| Audio | Realtek ALC S1220A 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback,
- High quality 120 dB SNR stereo playback output and SNR recording input,
Audio Feature :
- Optical S/PDIF out port(s) at back panel,
- Audio Shielding,
- Dedicated audio PCB layers,
- Premium Japanese audio capacitors,
- Audio Cover,
- Unique de-pop circuit,
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel W480 |
| CPU | Intel Socket 1200 for 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors,
Supports Intel 14 nm CPU,
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Form Factor | ATX Form Factor
12 inch x 9.2 inch (30.5 cm x 23.4 cm) |
| Graphics | Integrated Graphics Processor,
1 x DisplayPort 1.4,
1 x HDMI 1.4b,
Supports AMD 3-Way CrossFireX Technology |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 1 x CPU Fan connector(s),
1 x CPU OPT Fan connector(s),
3 x Chassis Fan connector(s),
1 x AIO_PUMP connector,
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C),
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),
6 x SATA 6Gb/s connector(s),
1 x 24-pin EATX Power connector(s),
1 x 8-pin EATX 12V Power connectors,
1 x Front panel audio connector(s) (AAFP),
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function,
1 x Thermal sensor connector(s),
1 x Clear CMOS jumper(s),
1 x COM port header |
| LAN | Intel I225-LM 2.5Gb Ethernet,
Realtek RTL8117 |
| Memory | Type:
DDR4,
Slots:
4 x DIMM,
Supported Memory:
4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory,
Dual Channel Memory Architecture,
Supports Intel Extreme Memory Profile (XMP),
OptiMem II
Maximum Memory:
128GB |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel W480 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3,
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4,
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10,
Intel Rapid Storage Technology supports,
Intel Optane Memory Ready |

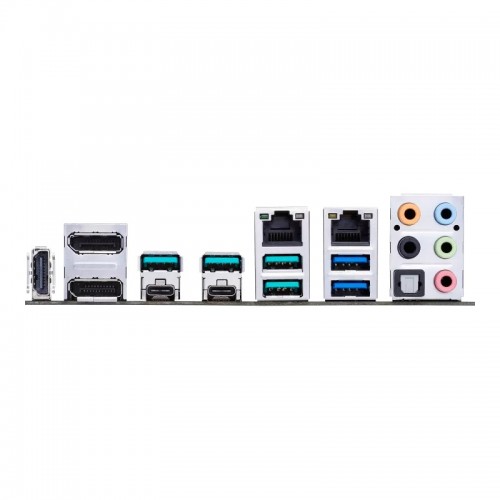

| USB Port | Intel Thunderbolt 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C).
Rear USB Port ( Total 6 ),
4 x USB 3.2 Gen 2 port(s)(4 x Type-A),
2 x USB 3.2 Gen 1 port(s)(2 x Type-A),
Front USB Port ( Total 7 ),
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C),
2 x USB 3.2 Gen 1 port(s)(2 x Type-A),
4 x USB 2.0 port(s)
Thunderbolt:
2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs,
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*,
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps,
Daisy-chain up to 12 Thunderbolt devices,
Up to 5V/3A, 15W charging support |
