| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Q570 Chipset | |
| BIOS | 128+64 Mb Flash ROM | |
| Form Factor | mATX | |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel 11th processors support PCIe 4.0 x16 mode Intel 10th processors support PCIe 3.0 x16 mode Intel Q570 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) |
|
| Memory | ||
| Maximum Memory | Max. 128GB | |
| Slots | 4x DIMM | |
| Supported Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. |
|
| Type | DDR4 | |
| Graphics | ||
| Graphics | Graphics specifications may vary between CPU types. Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) |
|
| LAN Port (s) | 1 x Intel I219-LM 1Gb Ethernet | |
| Supported Storage | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. |
|
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|

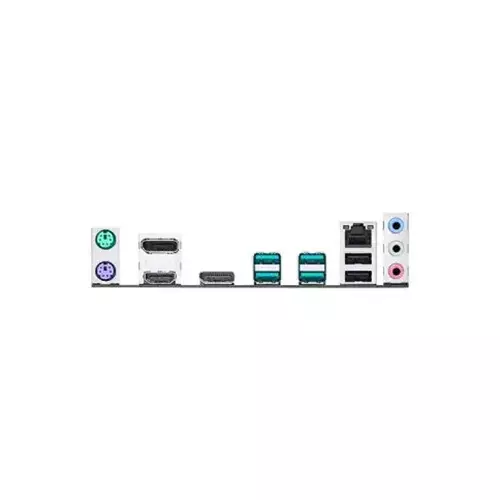

| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMITM 3 x Audio jacks 1 x Intel® I219-LM 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
|
| Display Port (s) | 2 x DisplayPort | |
| TPM (Trusted Platform Module ) | TPM 2.0 IC onboard | |
| Others | ||
| Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
|
| Warranty Information | ||
| Warranty | 3 Year | |

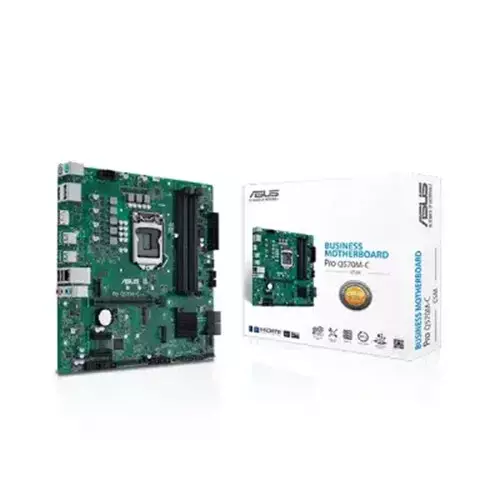

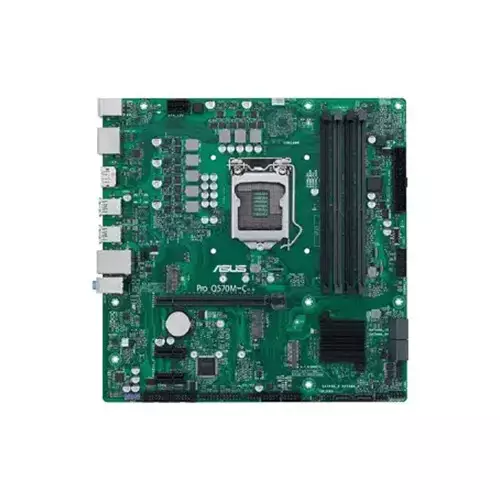

The ASUS Pro Q570M-C/CSM is a commercial micro-ATX motherboard engineered for 10th and 11th Gen Intel Core processors on the LGA1200 socket. Purpose-built for enterprise environments, it maximizes system stability, security, and manageability while maintaining a compact footprint ideal for space-constrained corporate setups.
At the core of its enterprise appeal is the integration of Intel vPro platform technology and the ASUS Control Center Express (ACCE) software. ACCE simplifies IT endpoint management by offering centralized control over hardware monitoring, software dispatching, and remote IT functions. Security is heavily reinforced with a server-grade boot-level BIOS recovery mechanism, an onboard TPM 2.0 IC chip for hardware-based cryptographic protection, and custom write-protected BIOS features to prevent unauthorized configuration changes.
Despite its smaller Micro-ATX form factor, the Q570M-C/CSM offers a versatile selection of legacy and modern I/O ports. It features dual DisplayPort outputs, HDMI, and even D-Sub (VGA) to ensure compatibility with various corporate display configurations. For storage and expansion, it includes:
Dual M.2 slots (supporting PCIe 4.0 speeds when paired with 11th Gen CPUs)
PCIe 4.0 x16 expansion slot for graphics cards or high-speed network adapters
Dual Intel Gigabit Ethernet ports, offering reliable network redundancy and efficient bandwidth management.
As a part of the ASUS Corporate Stable Model (CSM) program, this motherboard guarantees a stable supply chain with up to a 36-month lifecycle notice and a 6-month EOL advance notification to ensure seamless deployment across large fleets. Built with an anti-moisture coating to withstand harsh environments and featuring strict 24/7 reliability testing, it represents a highly dependable backbone for modern business computing.
