| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Maximum Memory | Max. 64GB | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
|
| Type | DDR4 | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any update ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 port | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Display Port (s) | 1 x DisplayPort 1.4 1 x VGA port |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Year | |

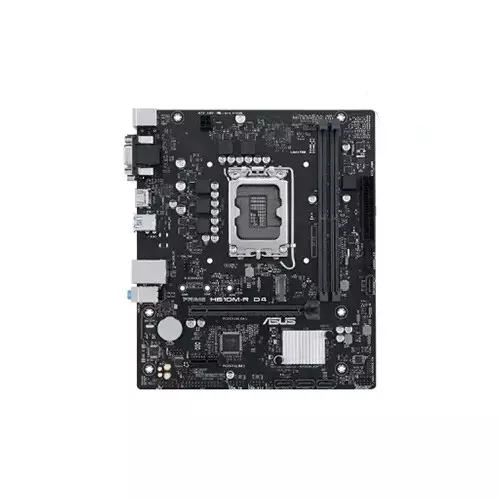

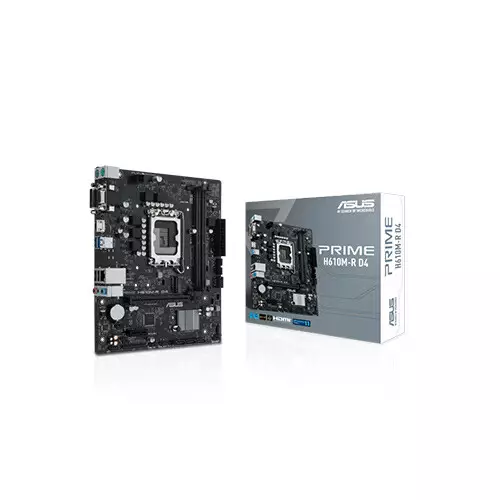

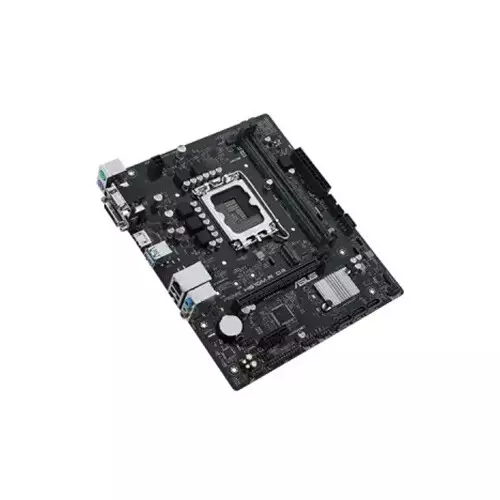

The ASUS PRIME H610M-R D4 is a highly efficient Micro-ATX motherboard engineered to support 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket. Built on the budget-friendly Intel H610 chipset, this motherboard is designed to fulfill the essential computing needs of everyday home configurations, office workstations, and internet cafes, delivering standard reliability without an inflated price tag.
To ensure reliable operation when hosting Intel’s hybrid architecture processors, the motherboard is equipped with an ASUS DIGI+ VRM (Voltage Regulator Module). This delivers clean, real-time power to the CPU, minimizing energy waste and maximizing system stability. Cooling management is kept simple yet effective via the Fan Xpert software interface or the UEFI BIOS, giving users full command over hybrid fan headers to keep system acoustics quiet and thermal performance optimal under standard workloads.
The motherboard features dual DIMM slots supporting up to 64GB of cost-effective DDR4 memory with speeds up to 3200MHz. For storage, it provides a high-speed M.2 slot operating at PCIe 3.0 x4 speeds, which is ideal for NVMe solid-state drives to ensure fast boot-up times, alongside four traditional SATA 6Gb/s ports. A single PCIe 4.0 x16 slot is available for graphics cards, offering plenty of bandwidth for modern entry-level or mainstream GPUs.

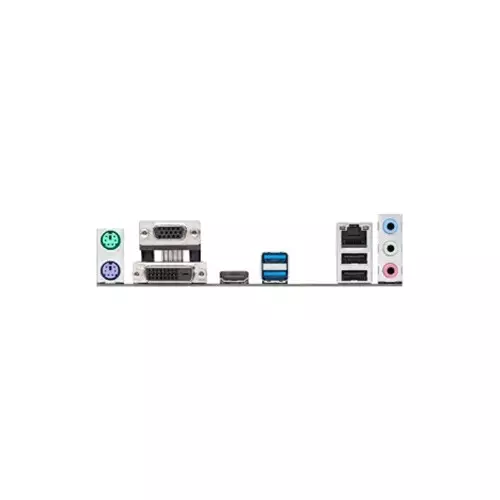

ASUS integrates its signature 5X Protection III suite into this board, featuring SafeSlot Core for reinforced PCIe slots, overvoltage protection, and LANGuard for safeguarding the Realtek 1Gb Ethernet port against lightning and static electricity. Notably, the rear I/O layout is highly versatile for older office gear, featuring legacy D-Sub (VGA), DVI-D, and modern HDMI outputs to support triple-display setups out of the box.
