| BASIC INFORMATION | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX 30.5cm x 23.4cm |
|
| Basic Information | ||
| Chipset | Z690 | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers 5 x Audio jacks |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 3 x M.2 slots | |
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |

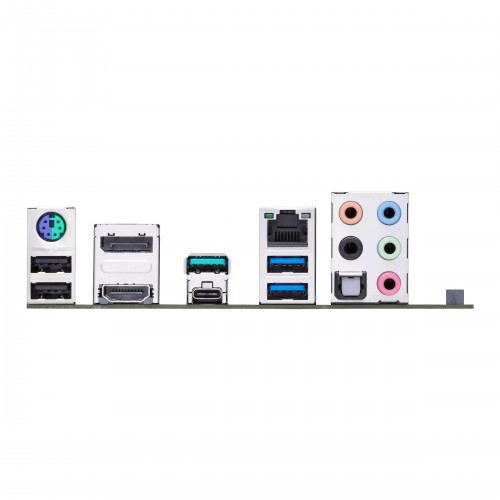

| USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless | V-M.2 slot only (Key E, CNVi & PCIe) * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. |
|
| Supported Storage | Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-5pin System Panel header 1 x Thunderbolt header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

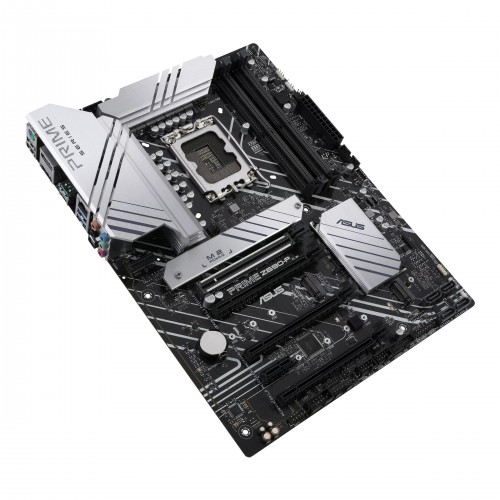

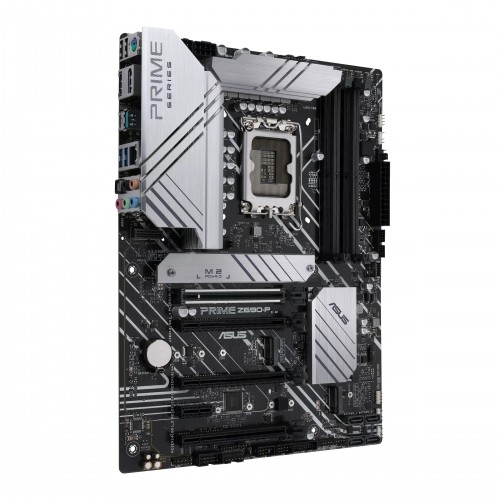

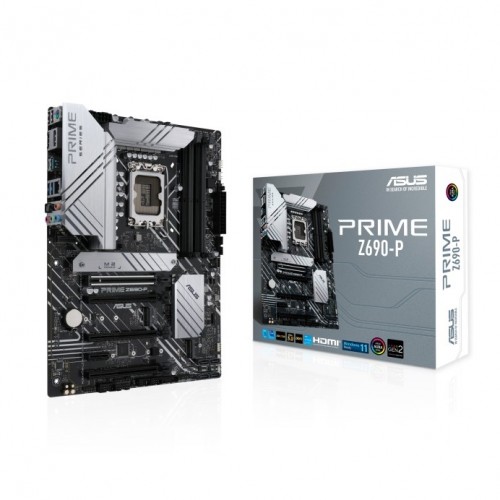

The Asus Prime Z690-P Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P is supported with DDR5 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P comes with 3 years of warranty.
Designed to be used with 12th Gen Intel processors, the PRIME motherboard leverages the CPU's potential to deliver power and connectivity suitable for creative designers and gamers alike. When paired with an Intel 12th Gen processor, you unlock PCIe 5.0 connectivity, enhancing speeds for your RAM, M.2 storage devices, and your x16 expansion slot. Additionally, you gain support for Intel Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enhancing system-wide performance.
The PRIME motherboard promotes durability, reliability, and stable power delivery with a 14+1 DrMOS system, alloy chokes, and capacitors. ProCool connectors enhance conductivity between power cables and the motherboard interfaces ensuring a sturdy connection to the power supply.
Sporting a comprehensive cooling system designed to balance power and temperature, the PRIME Z690-P utilizes many tools such as a large VRM heatsink, flexible M.2 heatsink, and a PCH heatsink to dissipate heat away from major board components. Hybrid fan headers allow you to connect and manage PWM fans, while Fan Xpert 4 software enables you to adjust fan settings when needed.
Using ASUS' proprietary trace layout, the PRIME motherboard allows memory kits to operate at higher frequencies and lower voltages to optimize system performance, essential for overclocking your memory.
An internal Thunderbolt header allows you to connect an optional Thunderbolt 4 card for enhanced connectivity. Experience up to 40 Gb/s data transfer speeds, daisy-chain capabilities, and displays for streamlined productivity.
Whether you are new or a seasoned builder, the PRIME boasts key enhancements designed to make installation of components a snap. The PCIe 5.0 x16 expansion slot features SafeSlot technology which uses a metal bracket to reinforce the stability of the expansion port for greater retention, ideal for larger graphics cards. Q-LED Code tells you when key parts of your system are functioning as normal upon startup, which makes troubleshooting easy in the event of a failure. Q-DIMM makes installing RAM modules easy, enabling you to only flip one DIMM lock on the outside section instead of both. A vertical M.2 slot allows you to install a Wi-Fi and Bluetooth module, allowing you to add wireless networking and peripheral support.
Ensure your system is protected with a multitude of enhancements designed to maintain power and performance efficiency. DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, and a Stainless-Steel Back I/O all work together to keep your system running.
Illuminate your rig in an array of colors and effects with integrated RGB headers. Able to be used in tandem with ASUS AURA Sync and Armoury Crate, you can set custom colors and effects across internal lighting strips as well as external peripherals, adding a layer of self-expression to your desktop.
