| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Maximum Memory | Max. 64GB | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Type | DDR4 | |
| Graphics | ||
| Graphics | 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Display Port (s) | 1 x VGA port | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Warranty | 3 Year | |

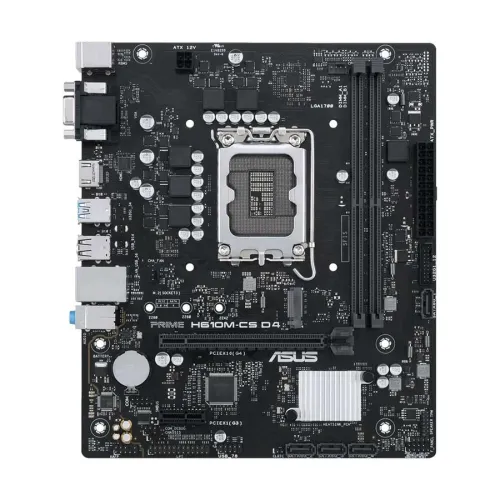

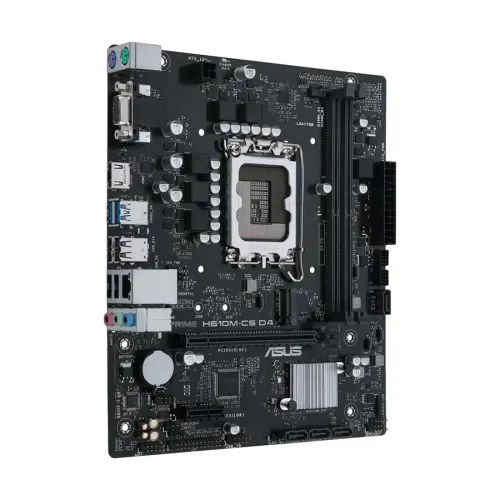

The ASUS PRIME H610M-CS D4 is a highly efficient Micro-ATX motherboard designed to support 14th Gen Intel Core processors, while maintaining backward compatibility with 13th and 12th Gen CPUs on the LGA1700 socket. Engineered to handle the everyday demands of budget-conscious builders, home offices, and internet cafes, this board packs essential connectivity and performance features into a compact, space-saving footprint. Efficient Power Delivery and CoolingTo unleash the potential of Intel’s hybrid architecture, the PRIME H610M-CS D4 features robust power delivery and comprehensive cooling controls. It utilizes the ASUS DIGI+ VRM (Voltage Regulator Module) for real-time control over voltage droop, ensuring stable power delivery to the processor during heavy workloads. System cooling is easily managed via the Fan Xpert software or the UEFI BIOS, allowing users to configure smart fan curves based on internal thermal sensors to keep the rig running cool and quiet. Storage and High-Speed ConnectivityBuilt with modern PC builds in mind, the motherboard supports dual-channel DDR4 memory up to 3200MHz, providing an affordable yet snappy memory configuration. For storage, it includes a high-speed M.2 slot running at PCIe 3.0 x4 speeds, ideal for fast NVMe SSD boot drives, alongside standard SATA 6Gb/s ports for bulk storage. Graphics and expansion are handled by a dedicated PCIe 4.0 x16 slot, offering future-proof compatibility with modern GPUs. Smart Protection and SafeguardsASUS prioritizes system longevity with its signature 5X Protection III hardware safeguards. This comprehensive suite includes SafeSlot Core (a fortified PCIe slot that resists shearing), LANGuard for hardware-level network protection against surges, and overvoltage protection. Complete with legacy options like a COM port header and a classic D-Sub (VGA) output alongside HDMI, it serves as a versatile, reliable foundation for any standard desktop build.
