| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
|
| Basic Information | ||
| Chipset | Intel B760 Chipset | |
| Audio | 3 x Audio jacks | |
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
|
| Maximum Memory | Max. 64GB | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
| Graphics | ||
| Graphics | 1 x VGA port |
|

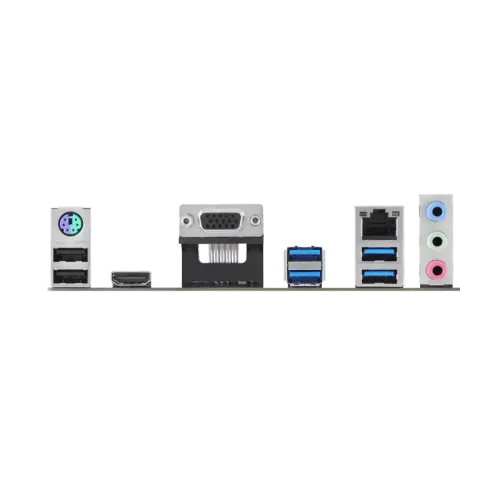

| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| LAN | 1 x Realtek 2.5Gb Ethernet | |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Internal I/O Ports | Fan and Cooling related |
|
| USB Port | Rear USB (Total 6 ports) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| VGA | 1 x VGA port | |
| Others | ||
| Bundled Software | ASUS Exclusive Software |
|
| Special Features | ASUS 5X PROTECTION III |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years warranty | |

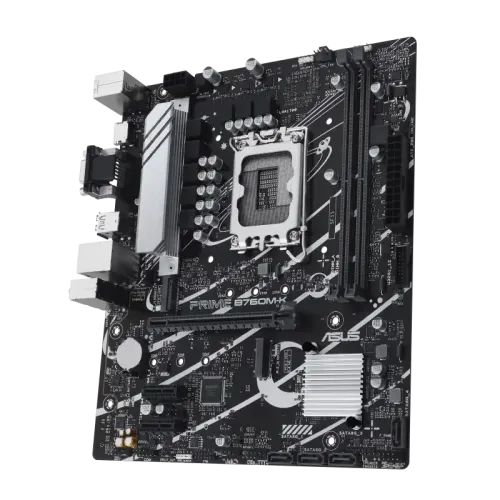

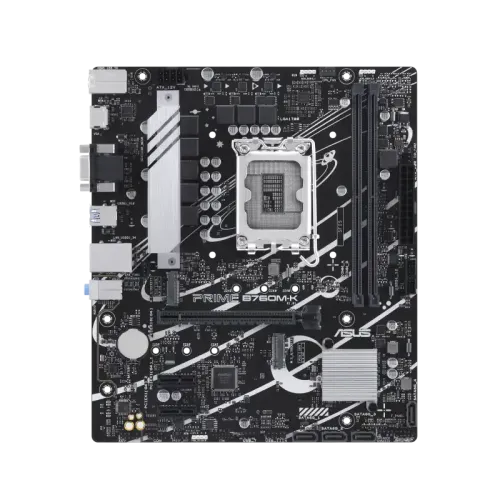

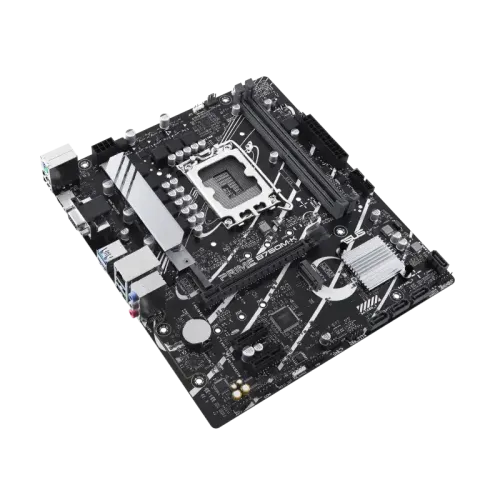

The Asus PRIME B760M-K 14th 13th & 12th Gen mATX matherboard is a cutting-edge motherboard designed for high-performance computing. With support for Intel's latest 14th, 13th and 12th Gen processors and an LGA 1700 socket, this motherboard is ready to power your gaming rig or workstation with unparalleled speed and efficiency. One of the standout features of this motherboard is its ultrafast connectivity options. With PCIe 4.0 support, two M.2 slots for lightning-fast storage, Realtek 2.5Gb Ethernet for high-speed networking, and Wi-Fi 6 for wireless connectivity, you can expect blazing-fast data transfer speeds and lag-free online gaming. The 14th Gen Motherboard also boasts a comprehensive cooling solution, featuring VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology. This ensures that your system stays cool even during intense gaming sessions or heavy workloads, allowing for optimal performance and stability. To enhance memory overclocking capabilities, this motherboard features ASUS OptiMem II technology, which carefully routes traces and vias and optimizes ground layers to preserve signal integrity. This results in improved memory overclocking potential, allowing you to push your system to its limits. This Asus PRIME B760M-K comes with Aura Sync RGB lighting, allowing you to customize the aesthetics of your build with onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips. These can be easily synced with other Aura Sync-capable hardware for a cohesive and synchronized RGB lighting setup. This motherboard offers rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports, providing versatile and high-speed connectivity options for peripherals and devices. the Asus PRIME B760M-K 12th & 13th Gen mATX Motherboard is a feature-rich and powerful motherboard that provides excellent performance, connectivity, and cooling capabilities for your PC build. Whether you're a gamer, content creator, or professional, this motherboard is designed to meet your high-performance computing needs. With its support for Intel's latest processors, PCIe 4.0, M.2 storage, Realtek 2.5Gb Ethernet, Wi-Fi 6, Aura Sync RGB lighting, and comprehensive cooling solution, it's a top choice for those seeking a high-quality motherboard for their next PC build.
