| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers |
|
| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2 x M.2 slots | |
| Memory | ||
| Slots | 2 x DIMM | |
| Graphics | ||
| Graphics | 1 x D-Sub port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

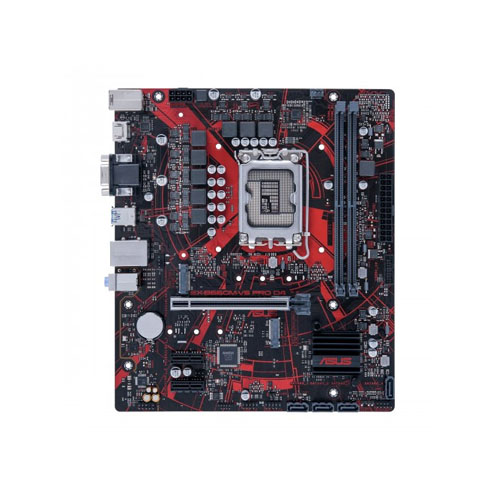

The ASUS EX-B660M-V5 PRO D4 12th Gen M-ATX Motherboard is a high-performance motherboard designed for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. The motherboard is equipped with Intel B660 Chipset, which ensures high-speed connectivity and processing power. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, which enhances the performance of the processor.The motherboard comes with a mATX Form Factor, which makes it an ideal choice for smaller desktop builds. It has a dimension of 9.6 inches x 8.3 inches, making it a perfect fit for Micro ATX cases. The motherboard has two DIMM slots that support DDR4 memory with a maximum capacity of 64GB. It supports a range of memory speeds, ranging from 2133 MHz to 5333 MHz (OC).The ASUS EX-B660M-V5 PRO D4 features an advanced audio system with Realtek 7.1 Surround Sound High Definition Audio CODEC. The audio system supports up to 24-bit/192 kHz playback and comes with premium audio capacitors, audio shielding, and dedicated audio PCB layers, which ensure high-quality sound output.
The motherboard features one PCIe 4.0/3.0 x16 slot, two PCIe 3.0 x1 slots, two M.2 slots, and four SATA 6Gb/s ports, making it an ideal choice for storage enthusiasts. It also features one HDMI port and one D-Sub port for video output.In terms of connectivity, the motherboard comes with six USB ports on the rear panel, including four USB 3.2 Gen 1 ports and two USB 2.0 ports. It also has a USB 3.2 Gen 1 header and two USB 2.0 headers for additional USB ports. The motherboard also features a Realtek 2.5Gb Ethernet port, which provides high-speed internet connectivity.The ASUS EX-B660M-V5 PRO D4 comes with several special features, including ASUS 5X PROTECTION III, which provides various protection mechanisms such as DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. It also features ASUS Q-Design, which includes Q-DIMM and Q-Slot, making memory and graphics card installation easier. The motherboard also has ASUS EZ DIY features such as ProCool, which provides a more reliable and efficient power supply.
