| BASIC INFORMATION | ||
| Chipset | - AMD X870E | |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* |
|
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors |
|
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
|
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|
| Network & Wireless Connectivity | ||
| LAN | - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 Wireless LAN - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Connectivity | ||

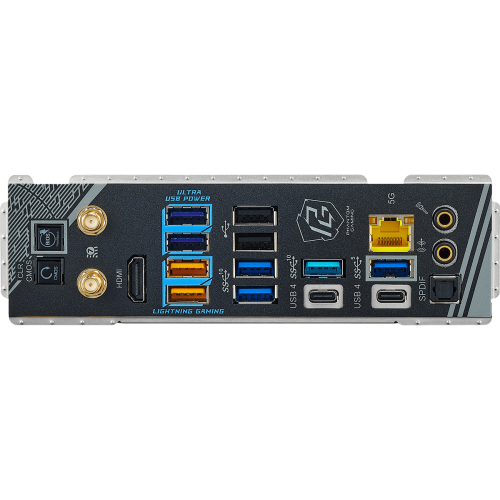

| I/O Port | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
| USB | CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)) - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
|
| Memory | ||
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Connectors | ||
| Connector | - 3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
|
| Connector & Ports | ||
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
The ASRock X870E Nova WiFi motherboard is a high-performance platform designed for gamers and power users looking to leverage AMD's latest Ryzen processors. Featuring the AM5 socket, it supports the latest generation of Ryzen CPUs, offering cutting-edge performance for gaming, content creation, and multitasking.
One of the standout features of the X870E Nova WiFi is its support for DDR5 memory, which allows for higher speeds and greater bandwidth compared to previous generations. This enhances overall system performance, particularly in memory-intensive applications.
The motherboard also includes PCIe 5.0 slots, ensuring that users can take advantage of the latest graphics cards and ultra-fast NVMe SSDs. With multiple M.2 slots, it provides plenty of options for high-speed storage, allowing for quick loading times and improved system responsiveness.
Integrated WiFi and Bluetooth capabilities offer convenient connectivity options, eliminating the need for additional network cards. The motherboard also features a robust VRM design, ensuring stable power delivery, which is essential for overclocking and maintaining system stability under heavy loads.
With a sleek aesthetic, customizable RGB lighting, and a comprehensive set of I/O ports—including USB-C—this motherboard is not only functional but also visually appealing. The ASRock X870E Nova WiFi is an excellent choice for anyone seeking a reliable and feature-rich foundation for their AMD-based build. Whether for gaming or productivity, it delivers exceptional performance and versatility.
