| BASIC INFORMATION | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - 2oz Copper PCB |
|
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - WIMA Audio Capacitors (For Front Outputs), - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR), - Pure Power-In, - Direct Drive Technology, - PCB Isolate Shielding, - Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Gold Audio Jacks, - 15μ Gold Audio Connector, - Nahimic Audio |
|
| CPU | - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors, - Intersil Digital PWM, - 16 Power Phase design |
|
| Memory | ||
| Memory | Type: Dual-Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, - Supports Extreme Memory Profile (XMP) memory modules, - 15μ Gold Contact in DIMM Slots, Maximum Memory: 128GB |
|
| Storage | - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*, - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*, - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) |
|
| Graphics | ||
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.1, - Supports HDCP 2.3 with HDMI 2.1 Port***, - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, - Supports Microsoft® PlayReady |
|
| Connector & Ports | ||
| HDMI | - 1 x HDMI Port, - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
|
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s), - Supports Killer LAN Software, - Supports Killer DoubleShot™ Pro, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE |
|
| Internal I/O Ports | - 1 x SPI TPM Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers*, - 2 x Addressable LED Headers**, - 1 x CPU Fan Connector (4-pin)***, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****, - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****, - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), - 1 x Front Panel Audio Connector (15μ Gold Audio Connector), - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only), - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), - 1 x Dr. Debug with LED, - 1 x Power Button with LED, - 1 x Reset Button with LED, - 1 x Clear CMOS Button |
|

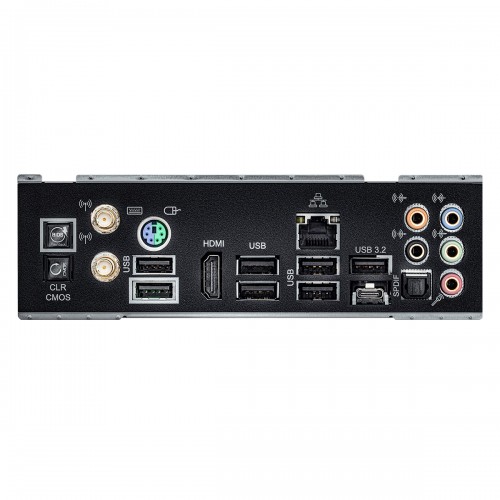

| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*, - 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |
