| BASIC Information | ||
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
|
| Basic Information | ||
| Chipset | AMD B650 | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| CPU | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
|
| Basic Information | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support | |
| Key Features | ||
| Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| Network & Wireless Connectivity | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Connectivity | ||
| USB | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection |
|
| Connector & Ports | ||
| Wireless Communication module | 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
|

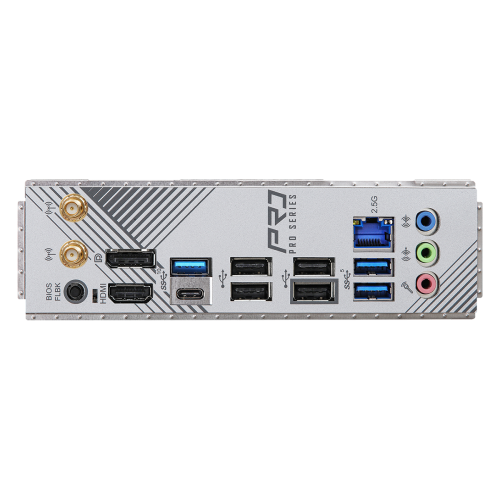

| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |
The ASRock B650M Pro RS WiFi motherboard is a powerful choice for gamers and PC enthusiasts looking to build a high-performance system. Designed to support AMD Ryzen processors, this micro ATX motherboard offers robust features that enhance both performance and connectivity.
Equipped with PCIe 5.0 support, the B650M Pro RS ensures lightning-fast data transfer rates, making it ideal for modern graphics cards and SSDs. With four DDR5 DIMM slots, you can easily upgrade your memory for improved multitasking and gaming experiences. The motherboard also includes multiple USB 3.2 Gen 2 ports, providing ample connectivity options for peripherals and external devices.
One of the standout features of the ASRock B650M Pro RS is its integrated WiFi 6 support, allowing for high-speed wireless networking without the need for additional adapters. This makes it perfect for gamers who require low-latency connections for online play.
The motherboard's advanced cooling solutions, including multiple fan headers and a robust power delivery system, ensure that your system remains stable even during intense gaming sessions. Plus, with its sleek design and customizable RGB lighting, the B650M Pro RS adds a stylish touch to any build.
In summary, the ASRock B650M Pro RS WiFi AMD motherboard is an excellent choice for anyone looking to build a cutting-edge PC. With its blend of performance, connectivity, and style, it is sure to meet the demands of today’s gamers and content creators alike.
