Out Of Stock
- Stock: Out Of Stock
- Brand: ASRock
- Model: B550M Steel Legend
Short Description
- Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
- Supports DDR4 4733+ (OC)
- 6 SATA3, 1 Hyper M.2, 1 M.2
- 10 Power Phase Design, Dr. MOS
Specification
| Motherboard | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Gold Audio Jacks, - Nahimic Audio |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Chipset | AMD B550 |
| CPU | - Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors, - Digi Power design, - 10 Power Phase design |
| Form Factor | -Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, - 2oz Copper PCB |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB.**, - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.1, - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports, - Supports Microsoft PlayReady |
| HDMI | - 1 x HDMI Port |
| Internal I/O Ports | - 2 x Antenna Mounting Points, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x DisplayPort 1.4, - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - 1 x Clear CMOS Button, - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks), - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers*, - 2 x Addressable LED Headers**, - 1 x CPU Fan Connector (4-pin)***, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****, - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****, - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Memory | Type: DDR4, Slots: AMD Ryzen series CPUs (Matisse), - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs, - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), - Supports AMD Quad CrossFireX and CrossFireX™, - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Supported Memory, - Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - Supports Extreme Memory Profile (XMP) memory modules, - 15μ Gold Contact in DIMM Slots, Maximum Memory: 128GB |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| USB Port | - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection) |
| WARRANTY INFORMATION | |
| Manufacturing Warranty | 03 Years Warranty |
Description

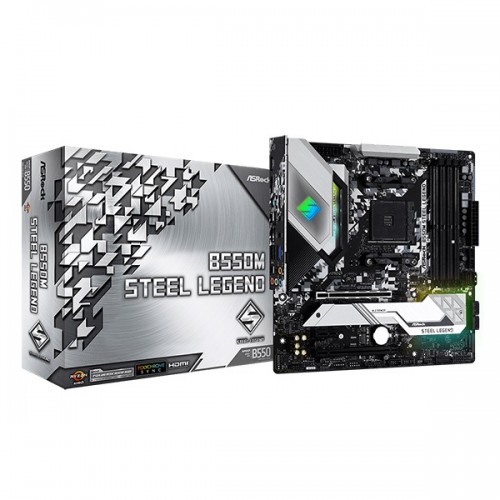

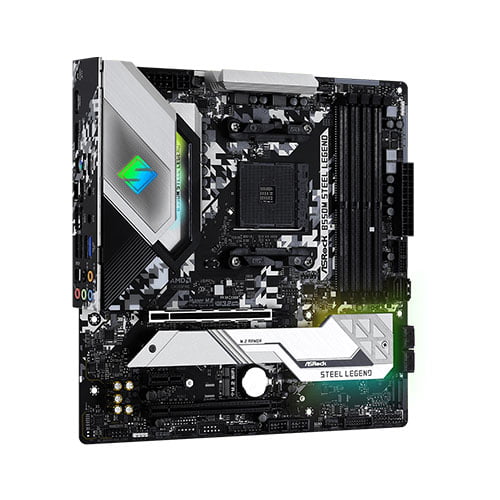

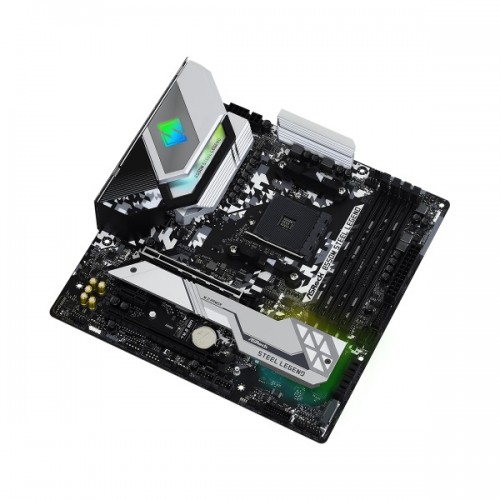

ASRock B550M Steel Legend DDR4 AMD Motherboard
ASRock B550M Steel Legend Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors. This ASRock B550M Steel Legend Motherboard also support DDR4 4733+ (OC), 10 Power Phase Design, Dr. MOS, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, AMD CrossFireX™. This ASRock B550M Steel Legend DDR4 AMD Motherboard featured with 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio, 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3), 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear), Dragon 2.5G LAN. Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
