| BASIC INFORMATION | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - Solid Capacitor design, - 2oz Copper PCB |
|
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio |
|
| CPU | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*, - Digi Power design, - 10 Power Phase design |
|
| Memory | ||
| Memory | Type: Dual-Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: - AMD Ryzen series CPUs (Vermeer) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series CPUs (Matisse) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - AMD Ryzen series APUs (Renoir) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, - Supports Extreme Memory Profile (XMP) memory modules, - 15μ Gold Contact in DIMM Slots, Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB.**, - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.1, - Supports HDCP 2.3 with HDMI 2.1 Port, - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, - Supports Microsoft® PlayReady |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s), - Supports Killer LAN Software, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE |
|
| Internal I/O Ports | - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers*, - 2 x Addressable LED Headers**, - 1 x CPU Fan Connector (4-pin)***, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****, - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****, - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), - 1 x Front Panel Audio Connector, - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only), - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection), - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) |
|

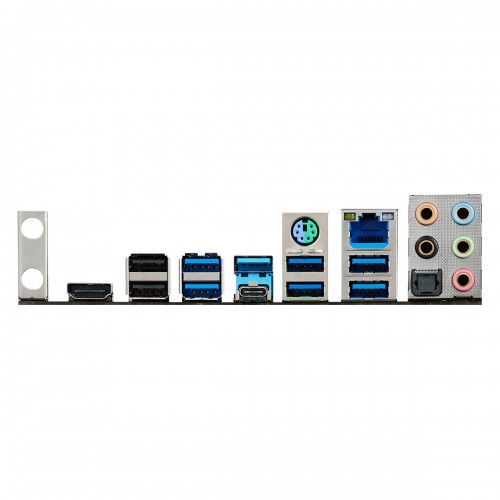

| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*, - 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

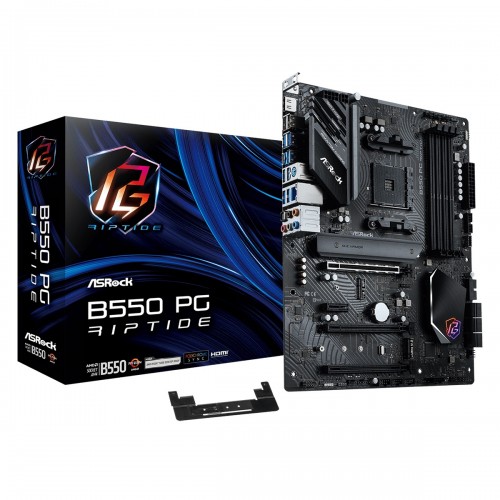

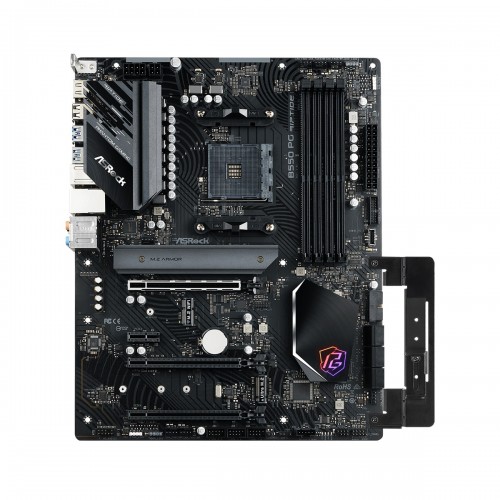

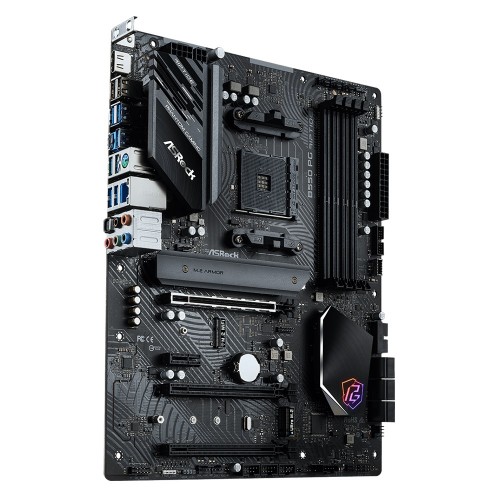

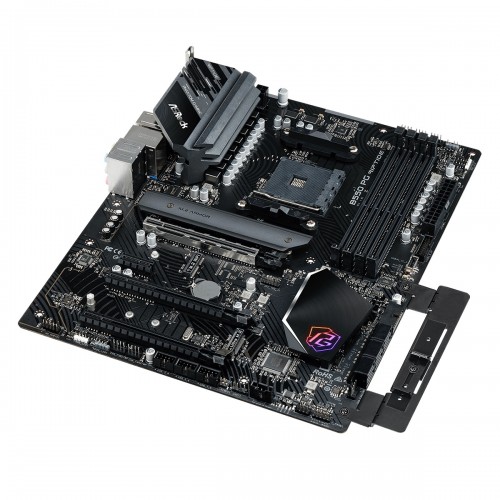

The ASRock B550 PG Riptide AMD AM4 ATX Motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it provides unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock B550M supports Dual M.2(22110) For SSD. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. The Sound Tracker is the visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned at 360° on a radar for a full immersion during the game. Whether the user is using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio offers user the most engaging listening experience, vibrant and rich with details. This motherboard features onboard RGB headers and an addressable RGB header that permits the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and many more. An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem. Extra-large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that the user's whole system may perform more stable. Also, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. High-Density Glass Fabric PCB design that diminishes the gaps between the PCB layers to protect the motherboard from electrical shorts caused by humidity. Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause the system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent motherboard components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for user convenience. Provides various apps and support software for users to download.
