| Video Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 | |
| Resolution | Digital Max Resolution: 7680 X 4320 | |
| Memory Bus (Bit) | 128-Bit | |
| Interface (PCI Express) | PCI® Express 4.0 | |
| Memory Clock | 1626 MHz | |
| Stream Processors | 1792 | |
| Memory Bandwidth (GB/sec) | 14 Gbps | |
| Power Specifications | ||
| Power Consumption | 500W | |
| Power Connector (Pin) | 1 X 8-Pin | |
| Display Option | ||
| Multi Display | 4 | |
| Ports | 1 X HDMI™ 2.1 VRR 3 X DisplayPort™ 1.4 With DSC |
|
| General | ||
| Engine Clock | - Boost Clock: Up To 2491 MHz - Game Clock: Up To 2044 MHz - Base Clock: 1626 MHz |
|
| Graphics Chipset | AMD Radeon RX 6600 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 269 X 132 X 41 Mm | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |

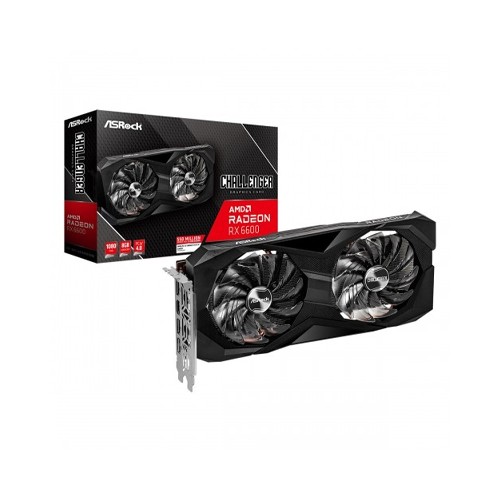

The ASRock AMD Radeon RX 6600 Challenger D, Is Here To Deliver The Performance You Deserve, Boasting The Latest PCI-E 4.0 Support, Dual Striped Axial Fan Cooling Solution A Stylish Metal Backplate And 0dB Silent Cooling Technology With Maximum Contact Heatpipes And Premium Thermal Pads, To Ensure You Can Consistently Reach The Top Tier Performance Required To Climb Those Leaderboards. AMD Radeon™ RX 6600 Series Graphics Cards Deliver Serious 1080p Gaming And Ultra-High Frame Rates. Get Up To 32 High-Performance Compute Units, Groundbreaking AMD Infinity Cache, And Up To 8GB Of Dedicated GDDR6 Memory. Experience The Next Gen Of Gaming Performance With AMD Smart Access Memory Technology1 When You Pair An AMD Radeon™ RX 6600 Series Graphics Card With An AMD Ryzen™ 5000 Series Desktop Processor.
ASRock's Custom Designed Striped Axial Fan Delivers Peak Performance By Guiding Airflow Down The Through The Stripe Structure To Reduce Air Turbulence And Ensure A More Effective And Efficient Cooling Process.

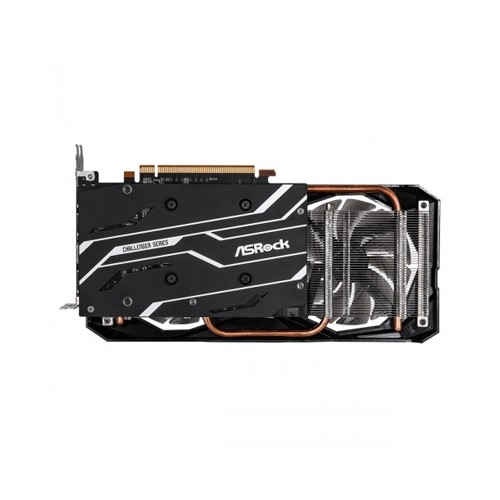

Designed To Reduce PCB Flex, The All-Metal Vented Backplate Also Enhances Cooling Dissipation And Is Equipped With High-Performance Thermal Pads, As Well As Boosting The Overall Aesthetics Of The GPU.
AMD RDNA™ 2 Architecture Is The Foundation Of Next-Generation Gaming PCs And Consoles. It Is The Bedrock Of The Upcoming Revolution In PC Gaming Graphics And Cloud Gaming. AMD RDNA™ 2 Elevates And Unifies Visual Effects And Gameplay Across Multi- Gaming Platforms, Like No Other Graphics Architecture Before.
Contrast Adaptive Sharpening (CAS) Helps Increase Visual Quality By Enabling Stunning Visual Sharpness With Optional Upscaling To Restore Detail Lost After Temporal Anti-Aliasing (TAA) Is Applied. For Games That Support FidelityFX CAS, Turning Off Radeon™ Image Sharpening In Radeon™ Software To Avoid Over-Sharpening Is Recommended
