| Key Feature | ||
| Certification | 80 PLUS Bronze certified | |
| Efficiency (Approx.) | 86% at typical load | |
| Fan Size | 120mm | |
| Frequency | 50-60Hz | |
| Output | ||
| Voltage | 100-240 Vac | |
| Power | 500W | |
| Connectors | ||
| Connector | ATX/MB 20+4 Pin x 1 (600mm) CPU/EPS 4+4 Pin x 1(600mm) PCI-e 6+2 Pin x 2 (500mm+150mm) SATA x 4 (500mm+150mm+150mm+150mm) 4 Pin Peripheral x 3 & 4 Pin Floppy x 1 (500mm+150mm+150mm+150mm) | |
| Input | ||
| Current | 8A | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 02 years warranty | |

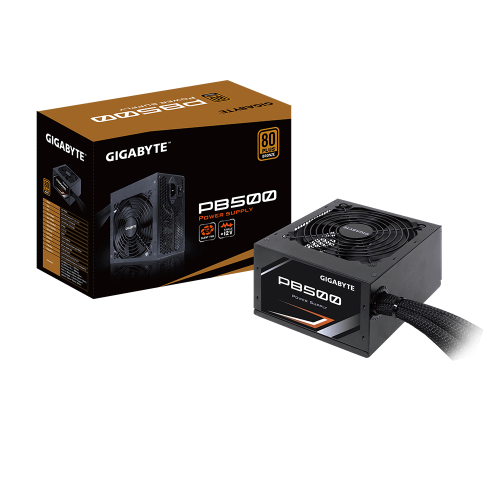

GIGABYTE PB500 80 PLUS BRONZE CERTIFIED 500 WATT POWER SUPPLY
●︎ 80 PLUS Bronze certified
●︎ 120mm Silent Fan
●︎ Single +12V rail
●︎ OPP/UVP/OVP/SCP/OCP/OTP Fully protection
120MM SILENT FAN
120mm silent fan optimizes the noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides a longer and more stable lifetime.
RELIABLE MESH BRAIDED CABLE
PB500 provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.
