| Key Feature | ||
| Certification | 80 PLUS BRONZE | |
| Efficiency (Approx.) | 85% @ Typical Load | |
| Fan Size | 120MM Hydraulic Bearing | |
| Frequency | 50-60Hz | |
| Modular Type | Non Modular | |
| MTBF | MTBF: 100,000 hours | |
| Output | ||
| Output | Output: 5V SB / 2.5A,-12V / 0.3A,3.3V / 15A Output 2: +12V 40A Output 3: +5V 18A | |
| PSU Form Factor | ATX | |
| Voltage | 100-240 VAC | |
| Power | 500w | |
| Input | ||
| Current | 10A MAX | |
| Input | 100-240V | |
| Others | ||
| Others | PFC: Active PFC Protections: UVP, OVP, OPP, SCP, Lightning Protection Operation Temperature: 0~40℃ MTBF: 100,000 hours Circuit Structure: Double Forward Regulatory: CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

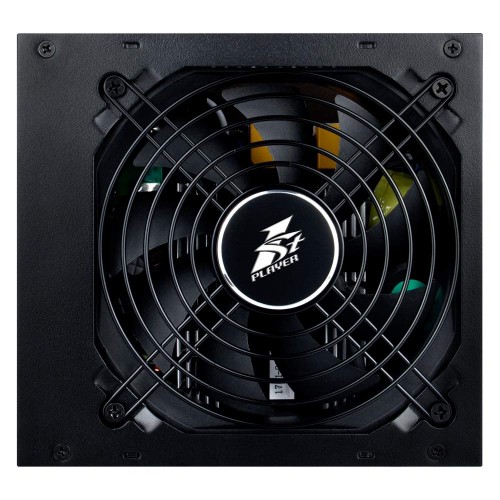

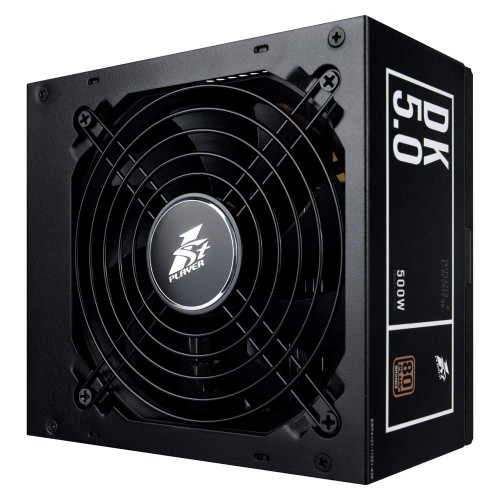

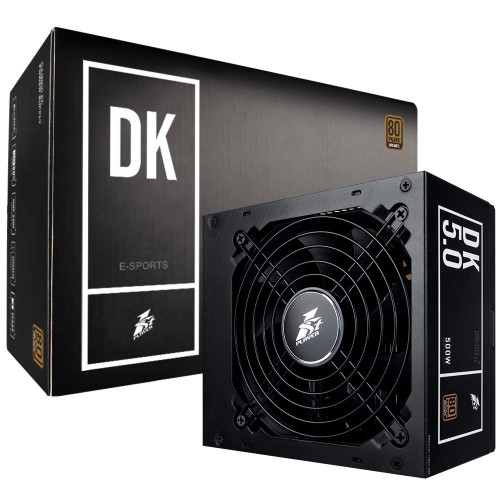

The 1STPLAYER DK 5.0 PS-500AX is armed with an 80 PLUS bronze certificate, Japanese TK main capacitors, single +12V rail design, and 1ST optimized rail structure, so as to realize a more powerful performance. It is a perfect combination of cooling and silence with a 12CM Hydraulic Bearing fan. Single +12V output, the output of +12V loading can be rated as 90% of the total power. It complies with ErP LOT 6, Standby power low as 0.5W. DK 5.0 delivers a reliable life expectancy and quality assurance. It has 24PIN*1, P8(4+4)*1, P8(6+2)+P8(6+2)*1, SATA+SATA+SATA+IDE*2 and Black Flat DC Cables. The 1STPLAYER DK 5.0 comes with 3 years of warranty.
