| Video Memory Specifications | ||
| Memory Size | 12GB | |
| Memory Type | GDDR6X | |
| Resolution | Up To 7680x4320 @60Hz | |
| Memory Bus (Bit) | 384-Bit | |
| CUDA Cores (Nvidia) | 8960 | |
| Interface (PCI Express) | 4.0 16x | |
| Memory Clock | 19 Gbps | |
| Stream Processors | Multiprocessors | |
| Memory Bandwidth (GB/sec) | 19 Gbps | |
| Power Specifications | ||
| Power Consumption | 350W | |
| Power Connector (Pin) | 2 X 8-Pin | |
| Recommended Power Supply | 750W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Ports | 3 X DisplayPort 1.4a (Up To 7680x4320@60Hz) 1 X HDMI® Connector* *Supports 4K 120Hz HDR, 8K 60Hz HDR, And Variable Refresh Rate As Specified In The HDMI 2.1 Specification |
|
| General | ||
| Engine Clock | Boost: 1725 MHz | |
| Graphics Chipset | GeForce RTX 3080 | |
| OS SUPPORT | Windows 11 / 10 (64-Bit, April 2018 Update Or Later) | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 317.8mm X 120.7mm X 63mm / 12.5" X 4.75" X 2.5" | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |
Based On The Ampere Architecture And Designed To Handle The Graphical Demands Of 4K Gaming And High Frame Rates, The ZOTAC GAMING GeForce RTX 3080 12GB Trinity OC LHR Graphics Card Brings The Power Of Real-Time Ray Tracing And AI To Your PC Games. The GPU Features 12GB Of GDDR6X VRAM And A 384-Bit Memory Interface, Offering Improved Performance And Power Efficiency Over The Previous Turing-Based Generation.

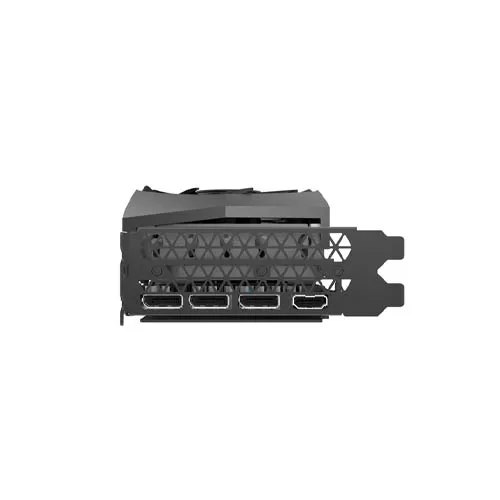

The Front Panel Of The Card Features A Variety Of Outputs, Such As DisplayPort 1.4a And HDMI 2.1. HDMI 2.1 Supports Up To 48 Gb/S Bandwidth And A Range Of Higher Resolutions And Refresh Rates, Including 8K @ 60 Fps, 4K @ 120 Fps, And Even Up To 10K. The RTX 3080 Is Not Just About High-Resolution Gaming. Computationally Intensive Programs Can Utilize The GPU's 8960 Cores To Accelerate Tasks Using CUDA And Other APIs. This Graphics Card Is The LHR (Lite Hash Rate) Version And Delivers An Estimated 52 MH/S ETH Hash Rate. The Value Of The Hash Rate Is For Reference Only And May Vary Depending On Your PC Hardware Specifications, Quality Of Your Internet Connection, And/Or Other Factors.
For Cooling, ZOTAC Implemented The IceStorm 2.0 Advanced Cooling System. Built For Wider Coverage, The Triple Fans Feature 11 Blades To Increase Airflow By Up To 10%. The Aluminum Fin-Stack Array Heatsink Is Paired With Up To Seven Copper Heat Pipes To Extract More Heat And Distribute It More Efficiently. An Improved Heat Pipe Layout Increases Direct GPU Contact In A More Densely Packed Space. FREEZE Fan Stop Automatically Stops Fans When The GPU Is Idle, Reducing Wear And Tear On The Fans And Enabling Efficient, Quieter Cooling. Active Fan Control Lets You Have More Control Over The Fans Using ZOTAC GAMING FireStorm Software. SPECTRA 2.0 Provides Dynamic RGB Lighting, Allowing You To Customize The Color And Lighting Pattern, Also In The ZOTAC GAMING FireStorm Software.
