| Video Memory Specifications | ||
| Card Size | Card Length: 224.1mm x 116.3mm x 39.2mm / 8.8" x 4.6" x 1.5" | |
| Memory Size | 12GB | |
| Memory Type | GDDR6 | |
| Resolution | up to 7680x4320@60Hz | |
| Core Clock | Boost: 1807 MHz | |
| Memory Bus (Bit) | 192-bit | |
| CUDA Cores (Nvidia) | 3584 | |
| INTERFACE | PCI Express 4.0 16x | |
| Memory Clock | 15 Gbps | |
| Interface | ||

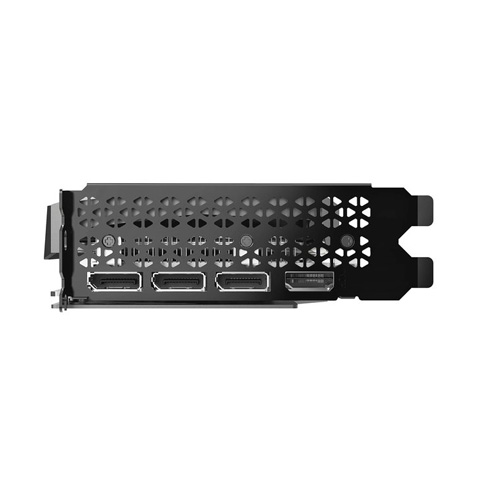

| Display Port | 3 x DisplayPort 1.4a (up to 7680x4320@60Hz) | |
| HDMI | HDMI 2.1* (up to 7680x4320@60Hz) *Ultra High-Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS |
|
| HDCP | 2.3 | |
| Power Specifications | ||
| Power Consumption | 170W | |
| Power Connector (Pin) | 8-pin | |
| Recommended Power Supply | 600W | |
| Display Option | ||
| Multi Display | Quad Display | |
| General | ||
| Graphics Chipset | GeForce RTX 3060 | |
| OS SUPPORT | Windows 10 64-bit (build 2004 or later) | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specifications | ||

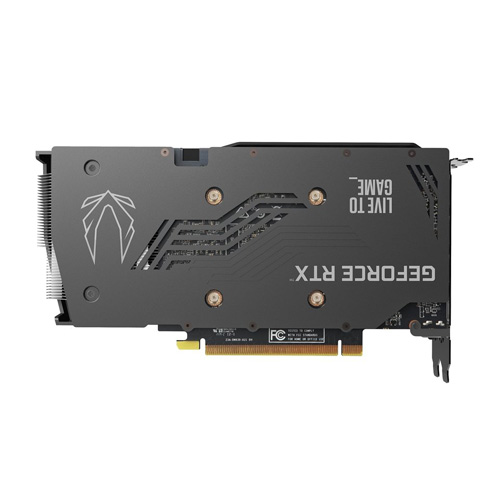

| Others | 2nd Gen Ray Tracing Cores 3rd Gen Tensor Cores IceStorm 2.0 Advanced Cooling Active Fan Control with FREEZE Fan Stop Metal Backplate VR Ready PCI Express4.0 16x Cooling: IceStorm 2.0 Slot Size: Dual Slot SLI: Not Supported Supported OS: Windows 10 64-bit (build 2004 or later) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty (2 Years Warranty available if registered online within 28 days of Purchase) Total warranty :- 3+ 2 ( after reg.) = Total 5 years | |

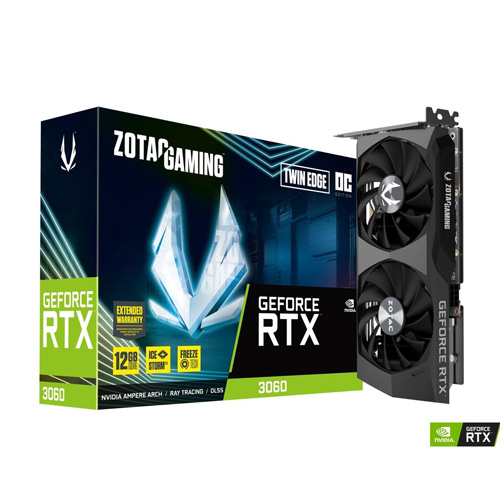

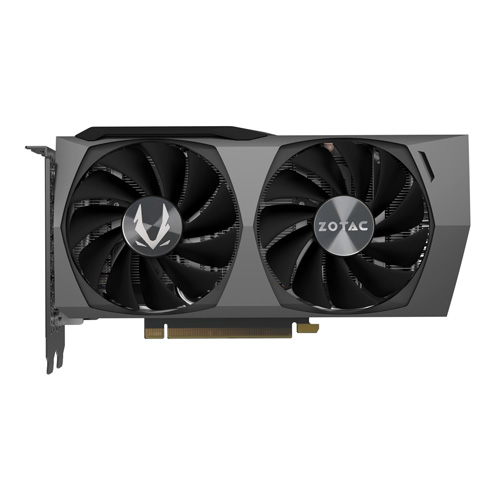

ZOTAC GAMING GeForce RTX 3060 Twin Edge OC GDDR6 12GB Graphics Card is built for power! The card has NVIDIA Ampere architecture, 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores12GB 192-bit GDDR6, 15 Gbps, PCI-E 4.0 slot, IceStorm 2.0 Cooling technology, Active Fan Control system, Freeze Fan Stop, Metal Backplate. The graphics card is 8K and 4 Display Ready, HDCP 2.3, VR Ready3 x DisplayPort 1.4a, 1 x HDMI 2.1, DirectX 12 Ultimate, Vulkan RT API, OpenGL 4.6 features. The Boost Clock is 1807 MHz. Get Amplified with the ZOTAC GAMING GeForce RTX 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed GDDR6 memory, the ZOTAC GAMING GeForce RTX 3060 Twin Edge OC gives rise to amplified gaming with high fidelity.
