| Video Memory Specifications | ||
| Type | GDDR6 |
|
| Size | 8GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC |
|
| Core Clock | 2572 MHz |
|
| Memory Clock | 20 Gbps | |
| BUS Type | 128-bit |
|
| Memory Interface | PCI Express 5.0 x8 |
|
| CUDA Cores | 2560 | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
|
| HDCP | 2.3 |
|
| Power Specifications | ||
| Connectors | 1 x 8-pin power input | |
| Recommended PSU | 550W | |
| Consumption | 130W |
|
| Display Option | ||
| Multi Display | Quad Display |
|
| Programming Interfaces | ||
| DirectX | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 8-Pin PCIe power connector SFF-Ready Graphics Card Compact dual-fan form factor BladeLink Fans Metal Backplate Slot Size: 2 Supported OS: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
|
| Warranty | ||
| Warranty | 5 years warranty. (3-year standard warranty + 2-years will be extended after online registration by the customer within 28 days of Purchase). | |

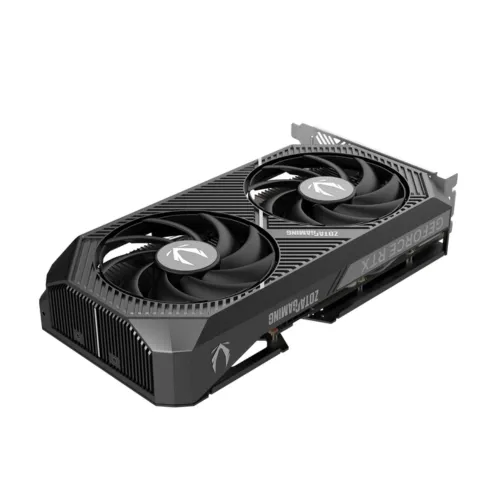

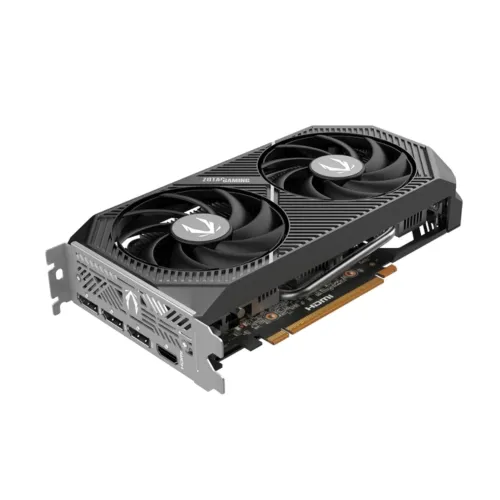

The ZOTAC GAMING GeForce RTX 5050 Twin Edge is a high-efficiency entry-point into the NVIDIA Blackwell generation. Balancing a compact footprint with enhanced cooling, it is built for gamers who want a reliable, modern 1080p experience with the latest AI-driven performance boosts.
Despite being an entry-level card, the RTX 5050 Twin Edge offers a significant technological leap over previous generations, focusing on high frame rates and AI capabilities:
CUDA Cores: 2,560
Clock Speeds: Features a boost clock of 2572 MHz.
Memory: 8GB GDDR6 on a 128-bit bus.
Speed: 20 Gbps memory clock, providing a bandwidth of 320 GB/s.
Architecture: Equipped with 5th Gen Tensor Cores and 4th Gen RT Cores for superior DLSS 4 and ray tracing performance.
The "Twin Edge" designation refers to ZOTAC's dual-fan thermal solution, which offers more thermal headroom than the single-fan SOLO variant:
BladeLink Fans: Two 90mm fans provide a focused airflow that keeps the card cool under heavy 1080p or light 1440p gaming loads.
FREEZE Fan Stop: Fans remain inactive during idle or low-load tasks, ensuring a silent desktop experience.
Compact Build: At a length of 221mm (8.7 inches) and a slim 2-slot thickness, it is an "SFF-Ready" card that fits effortlessly into mid-tower and most small-form-factor cases.

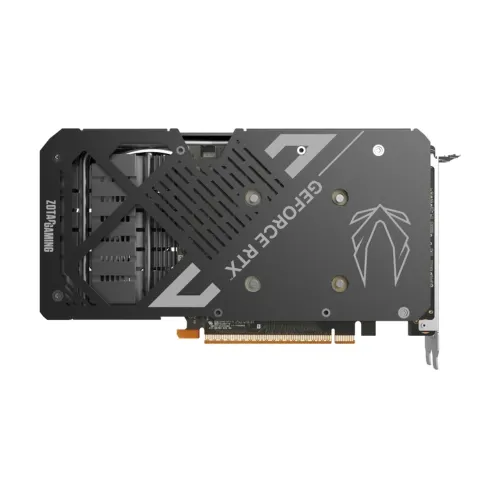

Metal Backplate: A reinforced wrap-around backplate adds structural rigidity and a premium aesthetic finish.

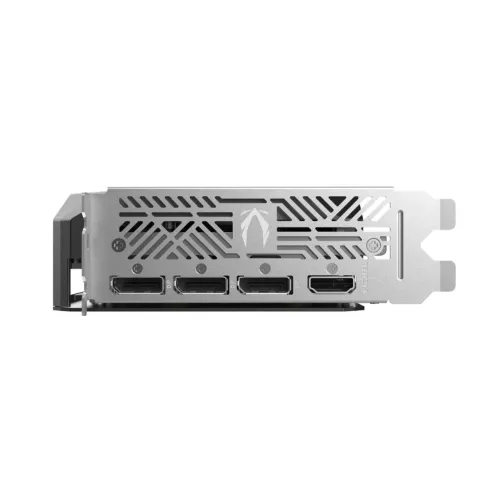

Power efficiency is a hallmark of this model, with a TDP of only 130W. It requires a single 8-pin PCIe power connector and a 550W PSU. For displays, it is future-proofed with 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to four monitors and resolutions up to 8K.
