| Basic Information | ||
| Chipset | Intel® Z390 Express Chipset | |
| Audio | 5 x audio jacks | |
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package |
|
| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Memory | Type: DDR4 DIMM sockets supporting Slots: Dual channel memory architecture Supported Memory: Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory: 64 GB |
|
| Graphics | ||
| Graphics | Graphics: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Max Shared Memory: 1 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers |
|
| USB Port | 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years | |

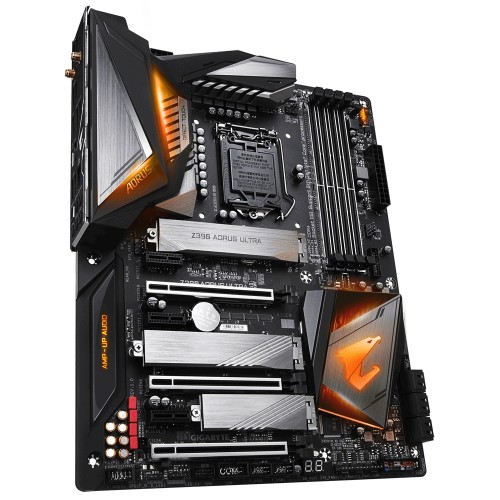

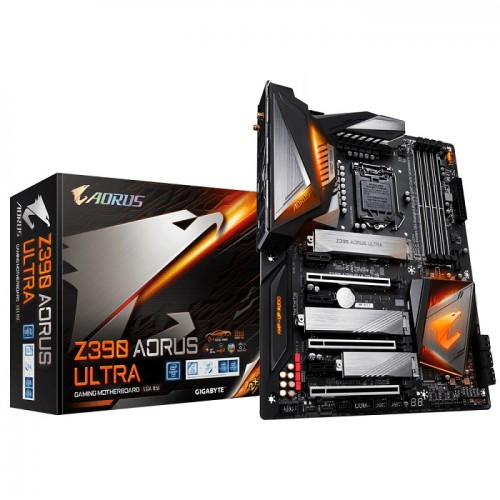

Gigabyte Z390 Aorus Ultra motherboard compatible with Intel 9th & 8th gen (Socket LGA1151) i9, i7, i5, i3, Pentium & CDC processor. This Dual Channel Non-ECC Unbuffered with High Quality Audio Capacitor board has maximum 64GB DDR4 memory and it has the capability of dual ultra-fast M.2 interface. If we consider the graphics of this multi-way support with PCIe Armor and Ultra Durable™ Design board has Intel HD graphics having the maximum resolution of 4096×2160@30 Hz. This board has Intel® CNVi 802.11ac 2×2 Wave 2 Wi-Fi, ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors, Intel® Gigabit LAN with cFosSpeed, RGB FUSION with Multi-Zone LED Light Show Design, supports addressable LED & RGB LED Strips,Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP,Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design, Gigabyte latest 9th gen mainboard with Intel Z390 Express chipset is a great choice for your desktop setup and have the best price in Bangladesh.
Highlighted Features of the Board
Its special features include advanced thermal design with direct touch heat pipe and multiple temperature sensors with hybrid fan Headers for ultimate cooling. This Intel Optane memory ready board has RGB FUSION 2.0 and triple PCIe Gen3 & NVMe M.2 PCIe SSDs in RAID 0 Support. GIGABYTE Ultra-Efficient M.2 Thermal Guard provides a thermal solution for M.2 SSD devices by preventing throttling and bottlenecks.
