| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Basic Information | ||
| Chipset | AMD X470 Chipset | |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
|
| Memory | ||
| Memory | Type: Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Slots: 4 x DDR4 memory slots Supported Memory: Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE Maximum Memory: supports up to 64GB |
|
| Graphics | ||
| Graphics | Graphics: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz1 Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors 1st, 2nd and 3rd Gen AMD Ryzen Processors Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors Max Shared Memory: Maximum shared memory of 2048 MB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz | |
| LAN | 1 x Realtek 8111H Gigabit LAN controller | |
| Supported Storage | AMD X470 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|

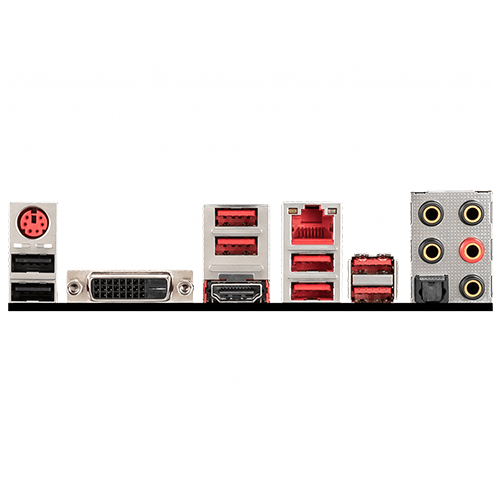

| Internal I/O Ports | PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin PUMP fan connector (supports up to 2A) 4 x 4-pin system fan connectors 1 x Serial port connector 1 x Parallel port connector 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Clear CMOS button |
|
| USB Port | ASMedia ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue. MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices.

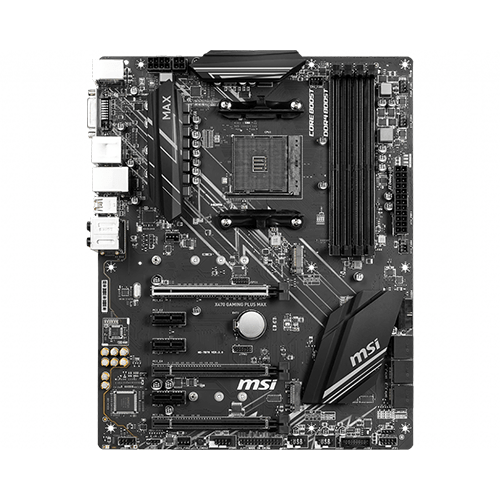

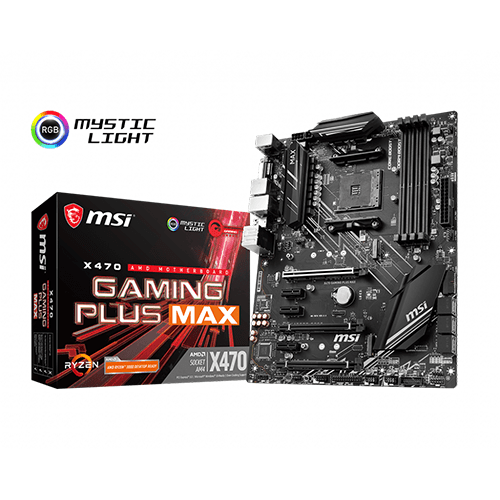

The MSI X470 GAMING PLUS MAX RGB AMD Motherboard is a high-performance motherboard designed for gamers and enthusiasts seeking a reliable and feature-rich platform for their AMD Ryzen processors. With its ATX form factor and robust components, this motherboard offers excellent performance, expandability, and customization options.One of the key features of the MSI X470 GAMING PLUS MAX is its compatibility with 1st, 2nd, and 3rd Gen AMD Ryzen processors, including Ryzen with Radeon Vega Graphics and Athlon with Radeon Vega Graphics desktop processors. This ensures that you can take full advantage of the powerful processing capabilities offered by AMD's Ryzen architecture.The motherboard supports dual-channel DDR4 memory with a maximum capacity of up to 64GB. It features four DDR4 memory slots and supports memory speeds of up to 4133 MHz (OC Mode), allowing for smooth multitasking and efficient operation of memory-intensive applications.In terms of storage options, the X470 GAMING PLUS MAX provides six SATA 6Gb/s ports and two M.2 slots. The M.2 slots support high-speed PCIe 3.0x4 and SATA 6Gb/s storage devices, allowing for fast data transfer rates and enabling you to connect ultra-fast SSDs for quick boot times and rapid file access.For graphics, the motherboard offers a DVI-D port and an HDMI port, allowing you to connect multiple displays and enjoy high-definition visuals. The HDMI port supports a maximum resolution of 4096x2160@30Hz, providing crisp and detailed images.The X470 GAMING PLUS MAX also features comprehensive connectivity options. It includes USB 3.2 Gen2 Type-A ports, USB 3.2 Gen1 ports, and USB 2.0 ports for connecting various peripherals. The motherboard also has a Realtek 8111H Gigabit LAN controller for reliable and fast wired network connections.
