| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | Intel® X299 Express Chipset | |
| Audio | Realtek® ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out | |
| CPU | Support for Intel® Core™ X series processors in the LGA2066 package L3 cache varies with CPU | |
| Memory | ||
| Slots | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots. |
|
| Memory | 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Supported when using a 44-lane or 28-lane CPU (6-core or above). 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core). 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
| Connector & Ports | ||
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x 3 Amp fan/water cooling pump header 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip extension cable headers 2 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x temperature sensor header 1 x Clear CMOS jumper |
|

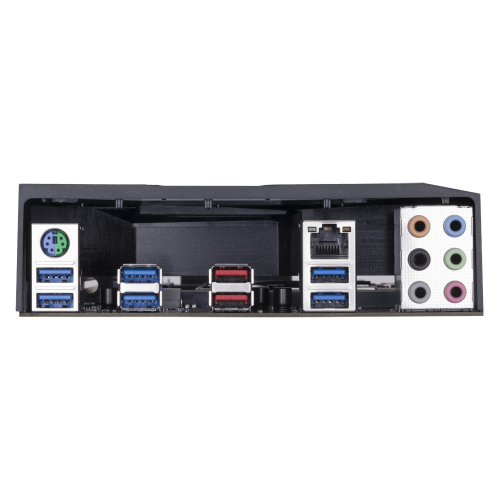

| USB Port | hipset+ASMedia® USB 3.1 Gen 2 Controller: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel Chipset: 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |
-Supports Intel® Core™ X-Series Processor Family
-Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
-Intel® Optane™ Memory Ready
-Intel® VROC ready
-ASMedia 3142 USB 3.1 Gen 2 with USB Type-A
-3-Way Graphics Support
-Server-Class Digital Power Design
-ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
-RGB FUSION support Digital LED and RGBW Light Strips
-Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
-Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
-NVMe PCIe Gen3 x4 U.2 support by optional adaptor
-Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
-Anti-Sulfur Resistor Design
-Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
-Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
-GIGABYTE UEFI DualBIOS™
-APP Center Including EasyTune™ and Cloud Station™ Utilities
