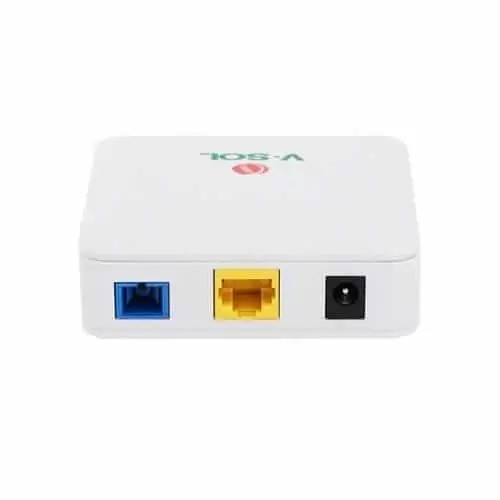

The Vsol V2801SG XPON is a versatile ONU (Optical Network Unit) device designed for single-port applications in fiber-to-the-home (FTTH) deployments. It supports both GPON (Gigabit Passive Optical Network) and EPON (Ethernet Passive Optical Network) technologies, making it a cost-effective and adaptable solution for ISPs and users.
XPON Compatibility:
Supports dual modes: GPON and EPON, with auto-detection.
Single-Port Design:
Equipped with one Gigabit Ethernet (RJ-45) port for high-speed LAN connectivity.
High Performance:
Complies with ITU-T G.984 (GPON) and IEEE 802.3ah (EPON) standards.
Supports high throughput and low latency for seamless data transmission.
Compact and Energy-Efficient:
Small form factor for easy deployment.
Low power consumption.
Management and Maintenance:
Supports remote management via protocols such as OMCI (for GPON) and OAM (for EPON).
Plug-and-play operation for ease of installation.
QoS and Security:
Advanced Quality of Service (QoS) features for bandwidth management.
Robust security with authentication mechanisms and encryption.
Use Case:
Ideal for FTTH applications, small-scale business networks, and single-user setups requiring high-speed internet.
Technical Specifications:
Optical Interface:
Wavelength: Downstream 1490 nm / Upstream 1310 nm
SC/UPC or SC/APC connector (check model variant)
Ethernet Interface:
1 x 10/100/1000 Mbps auto-negotiation RJ-45 port
Power Supply:
External power adapter (typically 12V DC)
Dimensions: Compact design (exact dimensions may vary)
Operating Temperature: -10°C to 55°C
