| Basic Information | ||
| Others | Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution: 3MP (2304 × 1296) |
|
| Power | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
|
| Image Sensor | 1/2.8” Progressive Scan CMOS | |
| Basic Information | ||
| Lens | Type: Fixed Focal Lens Focal Length: 2.8mm Aperture: F2.2 Angle of View: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9° |
|
| IR Distance | 30m | |
| Features | ||
| Dimension | 115 × 86 × 115 mm | |
| Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port | |
| Others | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Motion Detection, Video Tampering Detection, Exception ( Illegal Login) | |
| Weight | 0.26 Kg | |
| WARRANTY INFORMATION | ||
| Warranty | 1 Year | |

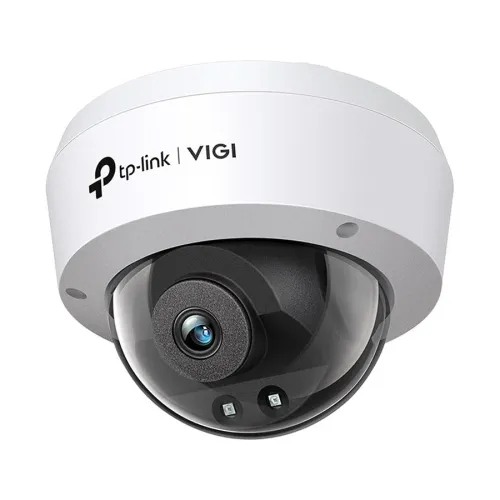

TP-Link VIGI C230I (2.8MM) 3MP IR Dome Network IP Camera
