Thermalright TL-M10 Black Casing

About Thermalright TL-M10

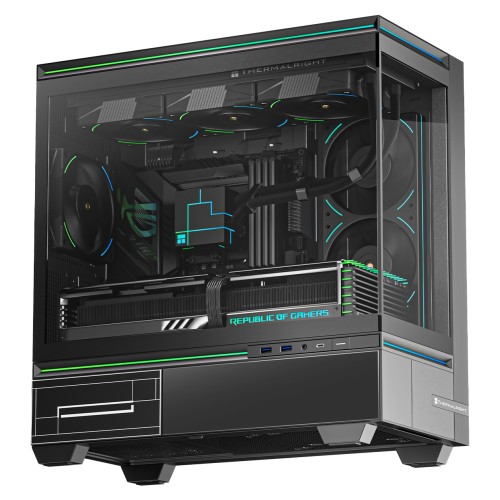

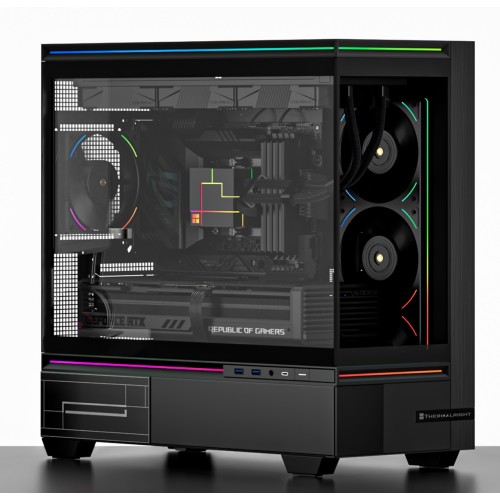

The Thermalright TL-M10 Vision Black Casing is a premium Micro-ATX (mATX) desktop chassis designed to combine high-performance cooling support with a visually dynamic aesthetic, centered around an integrated digital display.

The defining feature of the TL-M10 Vision is the 6.9-inch (or sometimes cited as 9.16-inch) LCD screen smartly embedded into the front or side facade. This display offers a high resolution (often 1920 x 462 or similar) and allows users to:

Monitor System Stats: Display real-time CPU/GPU temperatures, utilization, and other critical system parameters.

Personalize Aesthetics: Showcase custom animated GIFs, wallpapers, or logos, turning the PC into an interactive centerpiece. The display is connected via a standard 9-pin USB 2.0 header.

Despite its Micro-ATX form factor (supporting mATX, ITX, and ETX motherboards), the case offers substantial space for powerful hardware:

GPU Clearance: Supports long graphics cards up to 360mm.

CPU Cooler Height: Accommodates large air coolers up to 170mm or even 185mm in height.

Aesthetic View: Features tempered glass panels on the side and front/side (often offering a 270-degree view) to showcase the internal components and ARGB lighting.

The chassis is built for excellent thermal management with extensive fan and radiator support:

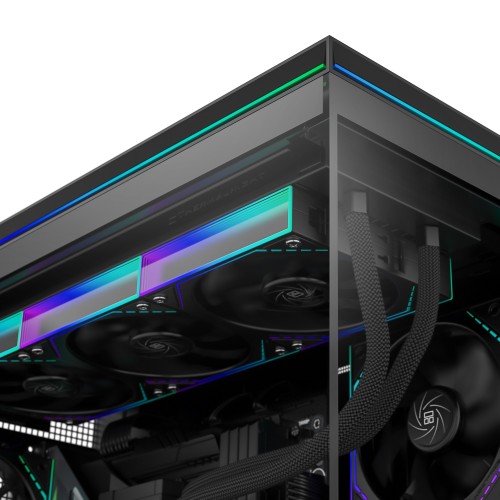

Radiator Support: Can fit a large 360mm radiator in the top panel, making it suitable for high-end AIO liquid cooling systems.

Fan Support: It supports up to ten 120mm fans in total (Top: 3x120mm/2x140mm; Side: 3x120mm; Bottom/PSU Shroud: 3x120mm; Rear: 1x120mm). Note: The case typically does not come with pre-installed fans.

The case also includes a modern front I/O panel with USB Type-C and dual USB 3.0 ports.
