| Key Features | ||
| Type | Dual Tower Air CPU Cooler | |
| Fan Speed | TL-H12-X28: 2150 RPM ±10% (Max); TL-H12015B: 1900 RPM ±10% (Max) | |
| Fan Airflow | TL-H12-X28: 80.45 CFM (Max); TL-H12015B: 56.36 CFM (Max) | |
| Noise | TL-H12-X28: 29.4 dBA; TL-H12015B: 28.4 dBA | |
| Air Pressure | TL-H12-X28: 2.65 mm H₂O (Max); TL-H12015B: 1.58 mm H₂O (Max) | |
| Connector | 4-Pin PWM Fan Connector | |
| Material | C1100 Pure Copper, Nickel Plated | |
| Others | 6 × 6mm Heat Pipes, Dual 120mm Fans, Digital Display, S-FDB V2 Bearing | |
| Physical Specification | ||
| Dimension | L122 mm × W114 mm × H162 mm | |
| Supported Sockets | ||
| Intel | LGA115X / LGA1200 / LGA1700 / LGA1851 / LGA2011 / LGA2066 | |
| AMD | AM4 / AM5 | |
| Warranty Information | ||
| Warranty | 3 Years | |

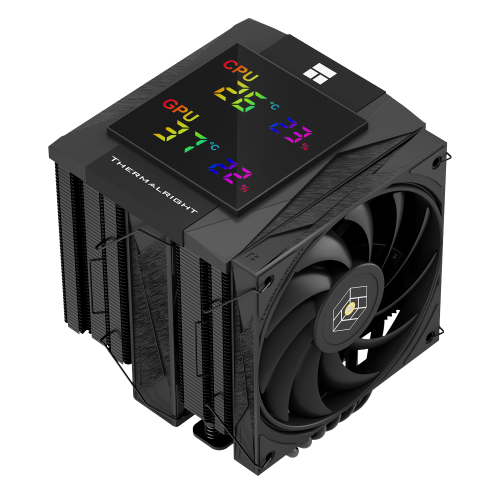

Thermalright Royal Knight 120 Digital BLACK is a premium dual-tower CPU air cooler designed for modern Intel and AMD desktop processors. It combines a large dual-tower heatsink, 6 × 6mm heat pipes, a C1100 pure copper nickel-plated base, dual 120mm fans, and a digital display for a powerful and feature-rich cooling solution.
The cooler features a 122 × 114 × 162mm heatsink and uses six 6mm heat pipes to transfer heat from the CPU to the heatsink. The C1100 pure copper nickel-plated base provides direct contact with the processor for efficient heat transfer.
For airflow, the Royal Knight 120 Digital BLACK comes with two different 120mm fans. The TL-H12-X28 fan offers a maximum speed of 2150 RPM ±10%, up to 80.45 CFM airflow, and up to 2.65 mm H₂O air pressure. The second TL-H12015B slim fan reaches up to 1900 RPM ±10%, with up to 56.36 CFM airflow and 1.58 mm H₂O air pressure.
Both fans use a 4-pin PWM connector and S-FDB V2 bearing, allowing PWM-based fan speed control and reliable operation. The fan noise levels are rated at 29.4 dBA for the TL-H12-X28 and 28.4 dBA for the TL-H12015B.
The built-in digital display adds a modern touch to the cooler and provides a convenient way to monitor supported system information.
With its dual-tower design, six heat pipes, dual 120mm fans, copper base, digital display, and wide Intel & AMD compatibility, the Thermalright Royal Knight 120 Digital BLACK is designed for users building or upgrading modern desktop PCs. Its black finish also complements a wide range of gaming and performance PC builds.
