SUNLUX XL-6500 Specification |
Light Source
| Visible Laser Diode 650nm
|
Scan Pattern
| Single Scan
|
Decode Rate
| 300 Times/Second
|
Scan Precision
| 4mil
|
Scan Width
| 30mm@Scan Window, 220mm@200mm
|
Scan Depth Of Field
| 0-330mm (0.33mm Pcs0.9)
|
Tilt
| 30
|
Elevation Angle
| 65
|
Deflection Angle
| 55
|
Support Interface
| PS-2(KB); RS-232; USB-HID; USB-Virtual COM
|
Print Contrast
| 20% UPC/EAN 100%
|
Mention Pattern
| Buzzer, Indicator
|
Scan Mode
| Manual
|
Size
| LxWxH: 175mm X 73mm X 102mm
|
Weight
| 246g
|
Material
| ABS + PC
|
Cable
| Standard 2M Straight
|
Voltage
| 5VDC
|
Operating Current
| 85mA
|
Static Current
| 30mA
|
Laser Class
| Meet The Grade I National Criteria For Laser Safety
|
EMC
| CE 8, FCC DOC Compliance
|
Operating Temperature
| -20°C To 50°C
|
Storage Temperature
| -40°C To 70°C
|
Humidity
| 5, To 85% Relative Humidity, Non-Condensing
|
Light Levels
| Daylight, 3000-8000 Lux
|
Shock
| Designed To Withstand 1.5M Drops
|
Decoding Capability
| - Code 39 Standard; Code39 Full ASCII; Code 128; UPC-A: UPC-E;
- EAN-13; EAN-8: EAN/UPC +205; ISSN; ISBN; Code 93; Industrial 25;
- Standard 25; Matrix 25; Interleave 25; China Post; Code11; Codebar;
- UK/PLESSEY; MSIIPLESSEY; Code 32; (Optional: GS1-RSS14; GS1-LIMITED; GS1-EXPENDED;)
|

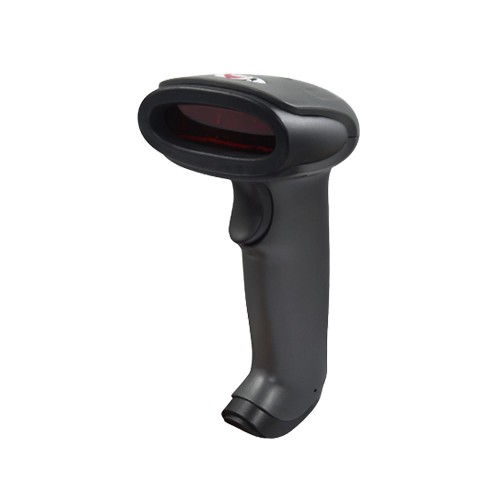

SUNLUX XL-6500 1D HANDHELD BARCODE SCANNER In Bangladesh
Sunlux XL-6500 1D Handheld Barcode Scanner Has A Serial Port Command Setting, A Manual LED And Buzzer Indicator, And Uses Very Little Power. This Barcode Scanner Can Also Decode Reversed Barcodes In Black And White. The Sunlux XL-6500 Barcode Scanner Has A Visible Laser Diode 650nm Light Source, A Single Scan Scan Pattern, A 300 Times/Second Decode Rate, And A Scan Precision Of 4 Microns. Elevation Angle 65, Deflection Angle 55, Interface PS-2(KB); RS-232; USB-HID; USB-Virtual COM, Print Contrast 20% UPC/EAN 100%, Mention Pattern Buzzer, Indicator Are Some Of The Features.It Also Includes Daylight Light Levels Of 3000-8000LUX. This Barcode Scanner Can Also Perform Aggressive Scanning On Tough Codes (Low Print Contrast, Damaged, Fuzzy And Long Codes). This Sunlux Barcode Scanner Has A 5VDC Power Supply, An Operating Current Of 85mA, And A Static Current Of 30mA. Sunlux's New XL-6500 Comes With A One-Year Warranty.
