SUNLUX XL-3600 Specification |
Light Source
| Red LED (Marking Light) White LED (Lighting)
|
Image Sensor
| CMOS
|
Scan Mode
| Manual & Continous
|
Image Size
| 6400480 Pie
|
Scan Speed
| 30 Fpsis
|
Decoding Depth
| 40-220mm (0.33mm Pcs0.9, EAN13)
|
Mnimum Resolution
| 4mil
|
Print Contrast Signal
| 15%
|
Si.
| LeWe H:175mm X 73mm E 102mm
|
Case Material
| ABS.PC
|
Cable Standard
| An
|
Input Voltage
| DC 5V
|
Working Current
| 230mA
|
Stand-By Current
| 150mA
|
Indicator
| LED Indicator And Buzzer
|
Drop Test
| 1.5m
|
Interface
| USB, Rs232, USB-VCP
|
Temperature (Operating)
| .10T-55t.C
|
Temperature (Storage)
| -20.C.-60°C
|
Humidity
| 5% To 95% (Non Condensing)
|
Laser Class
| Meet The Grade I National Criteria For Laser Safety
|
Light Levels
| 0-100.000 Lux
|
Scan Angle
| - Rotation: 360° Tilt: E507. Deflection: 450.
- Field Of Mew Angle: Horizontal 36. , Vertical 23.
|
Decoding Capability
| - 10: UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codebar; Code126;
- Interleaved 2 Of 5;Inclustrial 2 Of 5; Matrix 2 Of 5; Code 93;
- UCC/EAN 128; Code 11; MSI; UK/Plessey ; ISBN/ISSN;
- GS1 Databar Expanded; GS1 Datebar; GS1 [Weber Limited.
- 25: OR Code; PDF 417; Datemetrix
|

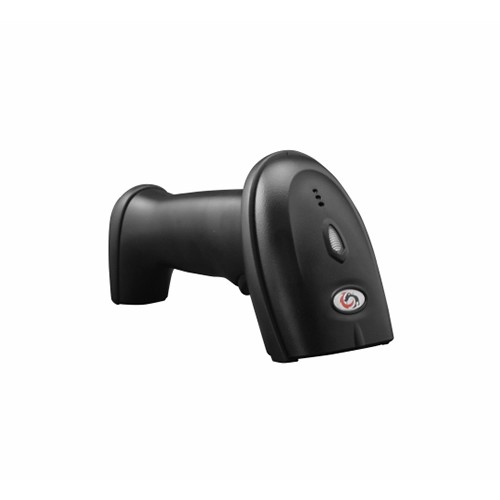

SUNLUX XL-3600 1D/2D HANDHELD BARCODE SCANNER In Bangladesh
Features
◎ Decode Most 1D & 2D Barcodes
◎ Superior Scanning Performance
◎ Plug And Play, Easy To Set Up
◎ Ergonomic ID Design For Operation Comfort And Durability
◎ Captures Barcodes On Mobile Phone, Tablet, Or Computer Screens
Sunlux XL-3600 Barcode Scanner Has A 2D Image Scanner With CMOS That Provides Fast, Sensitive, And Accurate Reading. It Has A Super Long Scan Depth Of Scan Field, Which Meets Client Requests, And An Ergonomic Design That Makes You Feel At Ease. The Barcode Scanner Also Has A Mobile Payment Option For Billing Receipts, As Well As An RS232 And USB Interface For Online Updates. Red LED (Marking Light) And White LED Are Used To Create The Barcode (Lighting).It Comes With A CMOS Image Sensor. Manual And Continuous Scan Modes Are Available On This Barcode Scanner. It Has A Scan Speed Of Roughly 30 Frames Per Second And A Focal Length Of 40220mm (0.33mm Pcs0.9, EAN13) Decoding Depth, Minimum Resolution Of 4mil, Print Contrast Signal Of 15% The Case Is Composed Of ABS+PC Material. It Has The Following Scan Angle Capabilities: 360° Tilt: 50° Deflection: 50° Horizontal Field Of View Angle: 36°, Vertical Field Of View Angle: 23° Rotation UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codabar; Code128; Interleaved 2 Of 5; Industrial 2 Of 5; Matrix 2 Of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey; ISBN/ISSN; GS1 Databar Expanded; GS1 Databar Limited; ISBN/ISSN; GS1 Databar Expanded; GS1 Data QR Code, PDF 417, And Datamatrix Are All Examples Of Two-Dimensional Codes. The Barcode Scanner Has A DC 5V Input Voltage, A 230mA Working Current, And A 150mA Standby Current.It Has USB, Rs232, And USB-VCP Ports. Temperatures Range From -10°C To 55°C (Operating), -20°C To 60°C (Storage), Humidity Ranges From 5% To 95% (Non-Condensing), And Light Levels Range From 0-100,000 Lux. The Sunlux XL-3600 Barcode Scanner Comes With A One-Year Guarantee.
