| Video Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 | |
| Resolution | HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
|
| Core Clock | Boost Clock: Up to 1845MHz Game Clock: Up to 1737 MHz |
|
| Memory Bus (Bit) | 128 bit | |
| INTERFACE | PCI Express 4.0 | |
| Memory Clock | 14 Gbps Effective | |
| Stream Processors | 1408 | |
| Interface | ||
| Display Port | 3x DisplayPort 1.4 | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Power Consumption | 135W | |
| Power Connector (Pin) | 1 x 8-pin Power Connector | |
| Recommended Power Supply | Minimum 450 Watt Power Supply | |
| Display Option | ||
| Multi Display | 4 | |
| General | ||
| Graphics Chipset | Sapphire Pulse Radeon RX 5500 XT | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 | |
| Physical Specifications | ||
| Dimensions | 233 x 121.8 x 39.6(mm) | |
| Others | Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 2 Years Warranty |
|

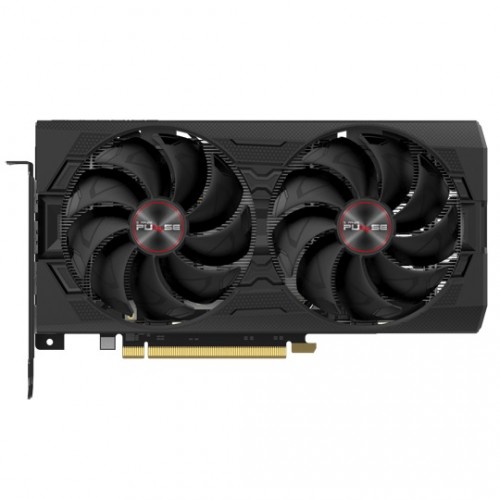

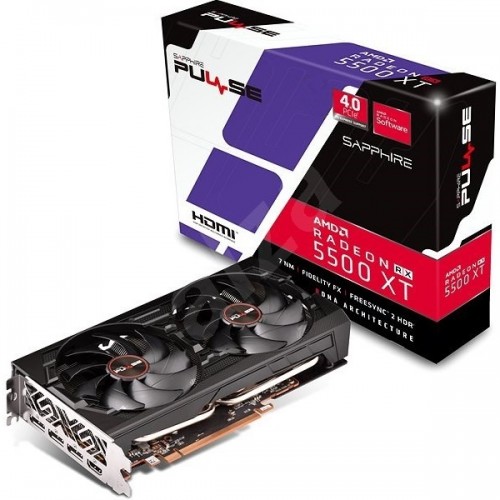

The SAPPHIRE PULSE RX 5500 XT offers great performance at a price point that every gamer needs. With fast GDDR6 memory and redefined display and media engines, the PULSE RX 5500 XT is designed to usher in a new era of PC gaming for 1080p gamers. Powered by AMD’s extreme RDNA architecture, its finely-tuned Dual-X Cooling Technology keeps the GPU, Memory, and VRM components cool and the noise level low. The all-aluminum backplate provides a rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support, and Dual Ball Bearing Fans keep your GPU running smooth and stable. Unleash your full gaming potential and embrace the SAPPHIRE PULSE RX 5500 XT as the beating heart of your PC! Explore all the incredible features that come with the SAPPHIRE PULSE RX 5500 XT Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you.
