| Projector Features | ||
| Aspect Ratio | 4:3, 16:9, LBX, Native, Auto | |
| Brightness | 4000 ANSI Lumens | |
| Computer Compatibility | WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA Compression, VESA Standards, PC & Macintosh Compatible | |
| Contrast | 25,000: 300,000:1 (W/ Extreme Black) | |
| Display Technology | DLP | |
| Horizontal Scan Rate | 15.375 – 91.146 KHz | |
| Keystone Correction | ±40° Vertical | |
| Lens Shift | 100% ~112.4% Vertical | |
| Light Source | Laser Phosphor | |
| Light Source Life | 20,000 Hours To 50% Brightness (Eco Mode) | |
| Native Resolution | 1080p 1920 x 1080 | |
| Projection Distance | 1.0 – 7.9m | |
| Projection Lens | F/1.94-2.23, F/12.81~16.74mm, 1.3x Manual Zoom | |
| Projection Method | 360° Operation, Portrait Mode Supported | |
| Projection Screen Size | 28” – 300.3” | |
| Throw Ratio | 1.21 – 1.59 | |
| Vertical Scan Rate | 50 – 85 Hz | |
| Video Compatibility | 480i/P, 576i/P, 720p/1080i (50/60Hz), 1080p (50/60Hz) | |
| Zoom Type | 1.3x Manual | |
| Displayable Colors | 1073.4 Million Colors (10 Bit) | |
| I/O Interface | HDMI X1, HDMI/MHL X1, VGA In X1, Audio In X 1, Audio Out X1, USB Power (5V/1.5A), RS232, Micro USB(FW Upgrade),RJ-45 X1 | |
| Noise Level | 32db (Eco Mode) | |
| Connectivity | ||
| Power Consumption | Bright : Typ. 256W Max. 295W @110VAC Typ. 247W Max. 284W @220VAC Eco: Typ. 192W Max. 221W @110VAC Typ. 185W Max. 213W @220VAC Eco Standby : <0.5W Active Standby : <2W |
|
| Power Supply | 100240V, 5060Hz, Auto-Switching | |
| Physical Specifications | ||
| Dimensions (W x D x H) | 337 X 265 X 108 (Excluded Adjustment Feet) | |

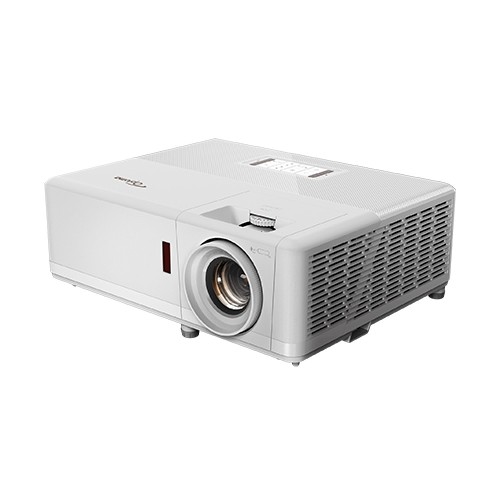

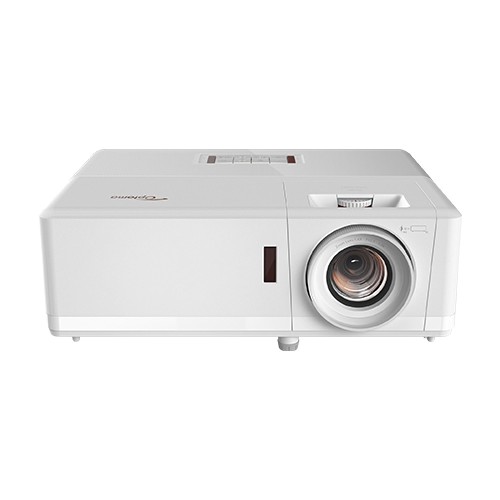

Optoma ZH403 Compact High Brightness Laser Projector The ZH403 Is A Compact Full HD 1080p DuraCore Laser Projector. Designed For Maintenance Free, Continuous Operation It Can Be Installed In Virtually Any Orientation. Its Small And Lightweight Footprint, 1.3x Zoom Combined With 360-Degree And Portrait Projection Make It A Breeze To Install. This Feature Packed Projector Is 4K And HDR Compatible, Has A Built-In Speaker And Its Laser Technology Delivers Up To 30,000 Hours Maintenance-Free Laser Light Source. For Ultimate Control, The Projector Comes With RJ45 Connection Allowing You To Monitor And Control Your Network In Multiple Rooms. Geared For Medium-Sized Exhibition Venues, Events, Tradeshows Or Meeting Rooms, It Maintains Excellent Image Quality As Brightness And Colour Saturation Is Preserved For Longer Compared To Lamp Systems.
The 403 Series Is Capable To Accept Native 4K Signals And Compatible With HDR10.. High Dynamic Range (HDR) Technology Improves Contrast Ratio, Brightness, And Color Depth On The Display, Delivers Brighter Whites And Deeper Black Levels. It Enhances The Details And Depth Of Field, Making The Images Clearer And More Realistic.
This Projector Is Designed With Optoma’s Airtight Optical Engine With IP6X Certification.The Airtight Enclosure Resists Dust Particles And Ensures A Long Lasting, Reliable And Maintenance Free Experience, And Ultimate Brightness Consistency And Reliability. The Mercury Free Laser Light Source Is Rated For Up To 20,000 Hours Enabling A Low Total Cost Of Ownership.
If To Have A Constant Brightness Performance Of A Projector Is Appreciated, Users Can Set Desired Brightness Level At Less Than 100% In Exchange For A Stable Brightness Output For Certain Period Of Time. The Lower The Brightness Level Is Set, The Same Brightness Output Length Of Time Can Be Achieved.An Advantage To This Is That Expensive Interchangeable Lens Projectors Can Be Substituted With A More Cost Effective Solution Whilst Still Retaining A Diverse Choice Of Positioning Options.
The Color Matching System, Combines Accurate Measurements Across Multiple Projectors Creates Seamless Blends Every Time.
All ProScene Projectors Are Designed For Continuous 24/7 Operation. Only Industry Proven Components Are Used To Ensure Superior Reliability.
Images Can Be Projected Over A Full 360° Range Along The Vertical Axis, Including Reproduction On A Ceiling Or Floor. This Projector Can Also Be Placed In Portrait Mode For Applications Such As Digital Signage Or For Tall Thin Projection Areas.
Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX Dynamic Device Discovery, PJ-Link, Telnet And HTTP Protocols Are Fully Supported, Allowing The Series To Be Controlled Across A Network, Keeping You In Control, Wherever You Are.
In Situations Where Only Absolute Darkness Is Required, This Projector Can Provide A Total Blackout That Functions Like Mechanical Shutter. The Change Between Normal Projection To A Total Black Image And Vice Versa Is Instantaneous.
This Projector Features Quick Start-Up And Shutdown And Reaches Full Brightness Quickly. To Maximise Energy Saving It Also Includes A ‘Pause Projection’ Feature Where The Light Source Can Be Completely Shut Off. Unlike Conventional Lamp Based Projectors, The Laser- Light Source Requires Minimal Cool-Down Time.
