| CPU Cooler | ||
| Supported Sockets | Intel LGA: 115X/1200/1700/1851 AMD: AM4/AM5 |
|
| Fan Speed | 500~2400±10%RPM 500~2000±10%RPM (with speed-control cable) |
|
| Fan Airflow | 90CFM 77CFM (with speed-control cable) |
|
| Type | All-in-One Liquid CPU Cooler | |
| Air Pressure | 5.8mmH2O 4.65mmH2O (with speed-control cable) |
|
| Connector | Pump Connector: 3-Pin Pump LED Connector: 3-Pin Fan Connector: 4-Pin PWM |
|
| Pump Speed | Pump: Speed: 3100±10%RPM Noise: ≤30dB(A) Connector: 3-Pin Rated Voltage: 12VDC Rated Current: 0.4A Power Consumption: 4.8W Bearing: Ceramic Bearing Motor: Three-phase Six-pole Motor MTBF: 100,000 Hours |
|
| Dimension | Radiator: 397*120*27mm Pump: 80*78*97mm Fan: 120*120*25mm |
|
| Weight | 1680g | |
| Material | Radiator: Aluminium | |

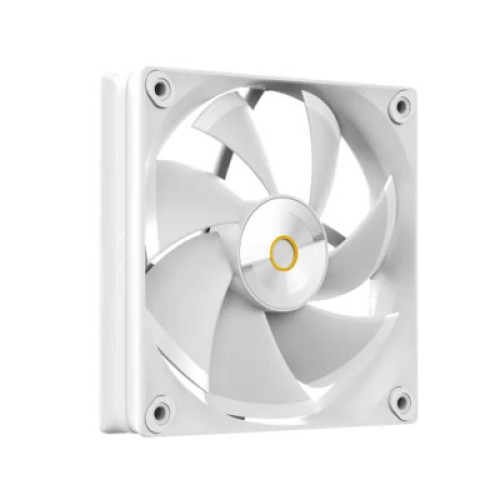

| Others | Noise: ≤36dB(A) ≤29dB(A) (with speed-control cable) Fan: Bearing Type: Fluid Dynamic Bearing Pump Display: Size: 3.5 inch Type: IPS Resolution: 640*480px Pump LED: Type: ARGB Connector: 3-Pin Rated Voltage: 5VDC Rated Current: 0.6A Power Consumption: 3W |
|
| Warranty | 5 Years | |

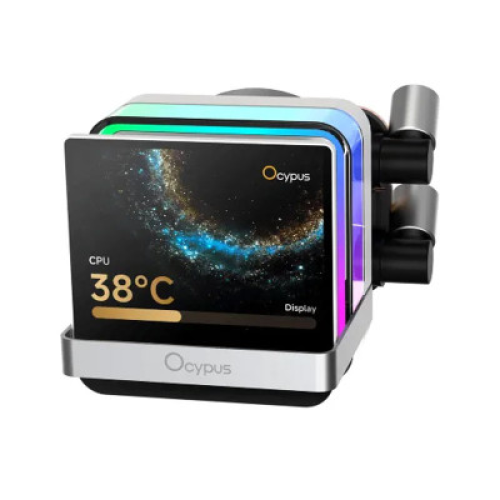

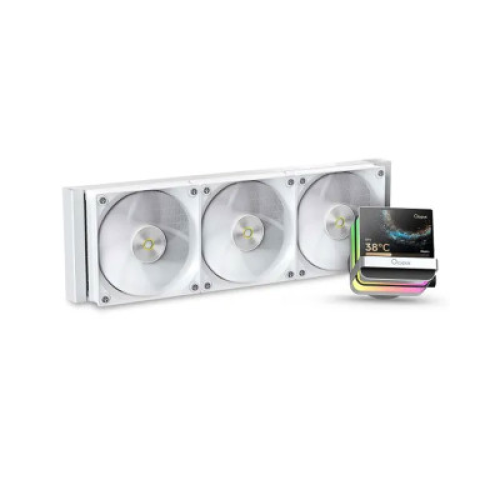

The Ocypus SIGMA L36 PRO WH is a premium 360mm All-in-One (AIO) liquid cooler that targets the "enthusiast aesthetic" with an all-white design and a flagship-grade integrated display. It is built for users who want maximum customization and a clean, futuristic look for their white-themed builds.High-Resolution Floating DisplayThe standout feature is the 3.5-inch IPS screen integrated into the pump head.Visual Clarity: With a $640 \times 480$ resolution and ultra-narrow 2.46mm bezels, it offers higher pixel density and a more "immersive" look than many competitors.Magnetic Versatility: The display utilizes a precision magnetic mount, allowing you to easily rotate the screen orientation or remove it entirely for maintenance.Creative Freedom: Through the Ocypus software, the screen supports real-time system monitoring (CPU/GPU stats), custom images, GIFs, and even MP4 videos.Performance & EngineeringThe SIGMA L36 PRO WH isn't just a pretty face; it boasts a cooling capacity rated for up to 310W TDP.Advanced Pump: It uses a high-speed pump (up to 3100 RPM) with a ceramic bearing for longevity and a 3700mm² ultra-large copper base featuring 0.1mm microchannels for rapid heat transfer.Radiator Fans: The three 120mm PWM fans feature Fluid Dynamic Bearings (FDB) and deliver an impressive 90 CFM of airflow.Acoustic Control: A bundled speed-reduction cable allows you to cap the fans at 2000 RPM, dropping noise levels from 36 dBA to a whisper-quiet 29 dBA.CompatibilityThe cooler is fully compatible with modern mainstream sockets, including Intel LGA 1700/1851 and AMD AM5/AM4. With its 400mm reinforced tubing and pre-installed fans, it simplifies the building process for high-performance gaming rigs.
