| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel Core Processors Processor Socket LGA1700 |
|
| Form Factor | MATX | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 2x PCIe X16 Slots PCI_E1 (From CPU) Support PCIe 4.0 X16 PCI_E3 (From B660 Chipset) Support PCIe 3.0 X4 1x PCIe 3.0 X1 Slot (Fom B660 Chipset) |
|
| Memory | 4x DDR4 Memory Slots, Support Up To 128GB Supports 1R 2133/2666/3200 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 4800+ MHz 1DPC 2R Max Speed Up To 4000+ MHz 2DPC 1R Max Speed Up To 4000+ MHz 2DPC 2R Max Speed Up To 3600+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 2x HDMI 2.1 With HDR Ports, Supporting A Maximum Resolution Of 4K 60Hz 2x DisplayPort 1.4 Ports With HBR3, Supporting A Maximum Resolution Of 4K 60 |
|
| Connector & Ports | ||
| LAN | 1x Realtek RTL8125BG 2.5Gbps LAN Controller | |
| Supported Storage | 4x SATA 6Gb/S Ports (From B660 Chipset) 2x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports Up To PCIe 4.0 X4 Supports 2242/ 2260/ 2280 Storage Devices M2_2 Slot (From B660 Chipset) Supports Up To PCIe 4.0 X4 Supports Up To SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Supports Intel® Optane™ Memory |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 1x 4-Pin ATX 12V Power Connector 4x SATA 6Gb/S Connectors 2x M.2 Slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C Port 1x USB 3.2 Gen 1 5Gbps Type-A Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 2x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x TPM Module Connector 1x Clear CMOS Jumper 1x TBT Connector (Supports RTD3) 1x Serial Port 1x Tuning Controller Connector |
|

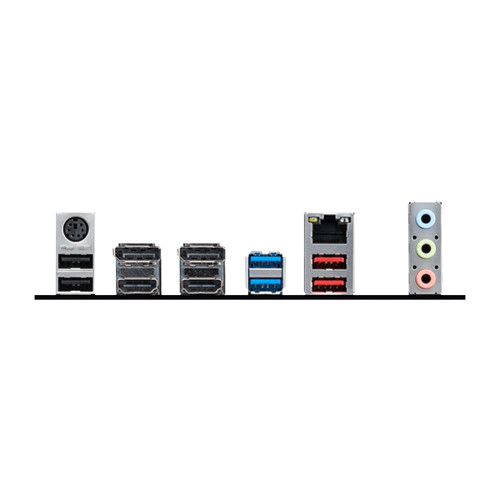

| USB Port | Intel® B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A Ports On The Back Panel 3x USB 3.2 Gen 1 5Gbps Ports (2 Type-A Ports On The Back Panel, 1 Type-C Available Through The Internal Connector) 6x USB 2.0 Ports (2 Type-A Ports On The Back Panel, 4 Type-A Ports Available Through The Internal Connectors) Asmedia ASM1074 2X USB 3.2 Gen 1 5Gbps Type-A Ports Through The Internal Connector |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |
MSI Motherboards Feature Tons Of Convenient And Smart Design For DIY Users, Countless System Tuning And Troubleshooting Tools Are At Your Disposal To Push Your System To New Heights And Satisfy Even The Most Demanding Tweaker. Makes It So Easy To Install Your Own Motherboard Without Any Issue. World’s Fastest SSDs Can Start To Lower Performance When Getting Hot. Part Of The Motherboards Heatsink Design, M.2 SHIELD FROZR Is The Next Generation M.2 Thermal Solution To Avoid This By Offering The Best Thermal Protection To Make Sure That SSD Maintains Maximum Performance. The Most Important Thing Of DIY Is Expandability. MSI PRO B660M-A DDR4 Motherboards Feature Plenty Possibility For Prosumers’ Need. Stable LAN, Faster Storage And USB Transfer Speed And Other Expandable Connectors Are Ready To Enlarge Your Flexibility. 2.5Gbps LAN Provides Incredible Data Transfer Speed Faster Than General Gigabit LAN. This Is A Premium Solution For Demanding Users. MSI PRO B660M-A DDR4 Motherboards Are Designed To Satisfy Any Professional Workflow. Elevate Your Listening Pleasure And Enjoy Extreme Sound Quality. Moreover, With Years Of Experience In Creating Performance Enhancing Tools That Are Easy To Use, Only The Highest Quality Applications Are At Your Disposal. The Extensive Features Let You Fine-Tune Your System To Deliver Reliable Maximum Performance. MSI OC LAB Does Not Merely Work Hard On Extreme Overclocking. The XMP Memory Profile Has Great Improvement On Performance And Efficiency For B660 . Easy To Enable XMP Profile With Auto Power Settings To Get The Best Memory Speed And Stability. Core Boost Technology Combines MSI's Premium Layout And Optimized Power Design Which Allows For Faster And Undistorted Current Delivery To The CPU At Pin-Point Precision. Not Only Supporting Multi-Core CPU, Also Creating The Perfect Conditions For Your CPU Overclocking.
