| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 1x Front panel audio connector | |
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: up to 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Intel I225V 2.5Gbps LAN controller | |
| Supported Storage | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|

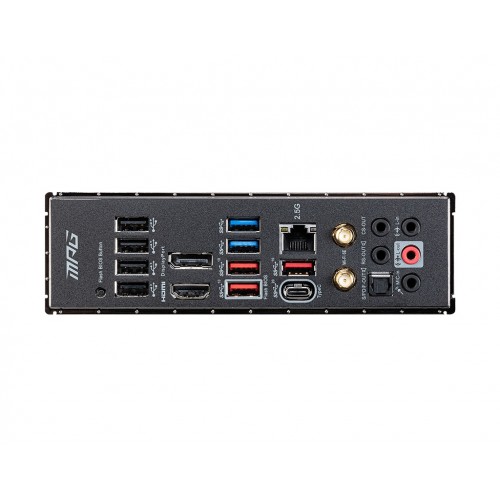

| USB Port | 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

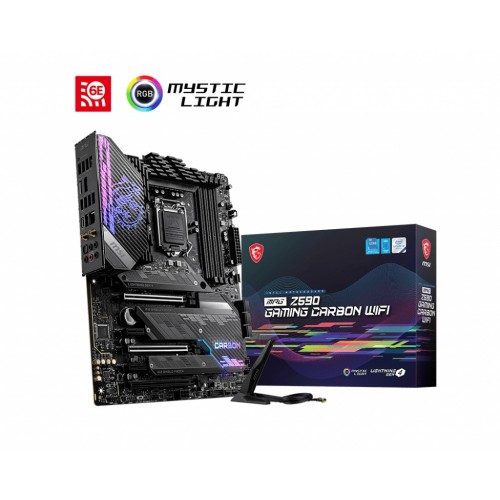

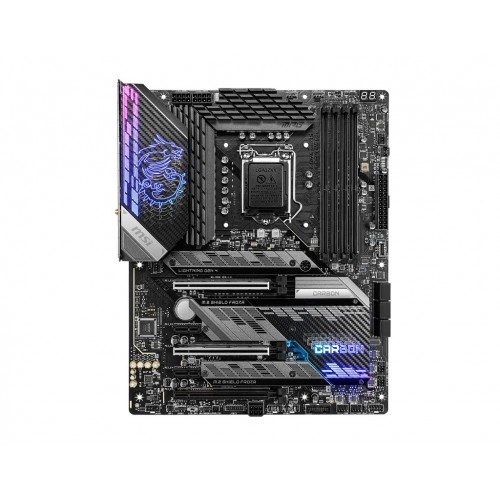

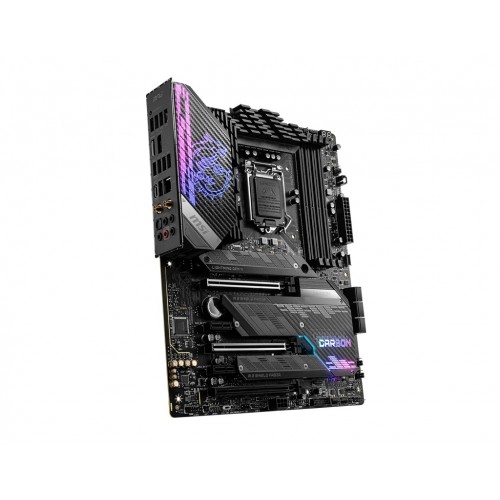

The MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Here, 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI MPG Z590 Gaming Carbon WiFi ATX Motherboard Supports 11th and 10th Gen Intel Core, Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) & provides Lightning Fast Game experience, like- MHz PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This Motherboard Designed with 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost. Here, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience. This Motherboard comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It also has 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution that Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here, the AUDIO BOOST 5 that rewards your ears with studio grade sound quality for the most immersive gaming experience, High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.
