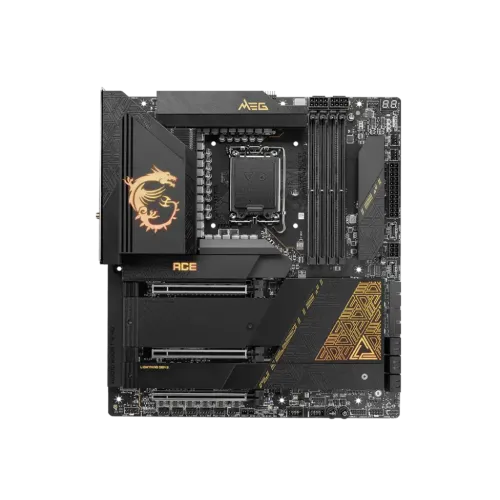

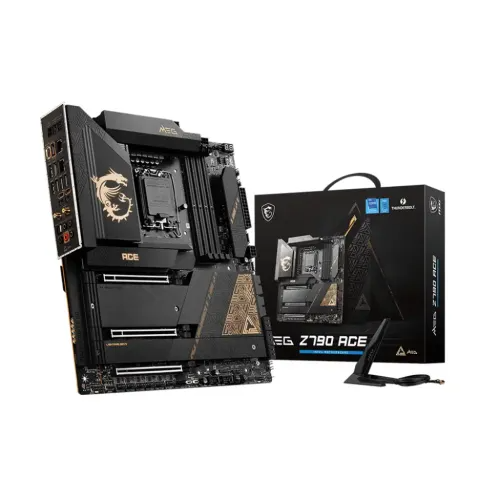

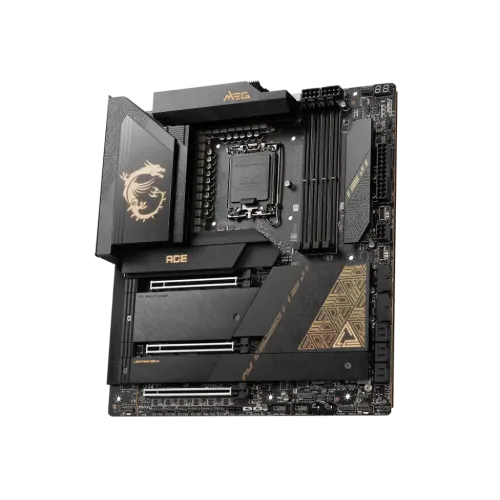

/MEG Z790 ACE/meg-z790-ace-01-500x500.png "MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard")
/MEG Z790 ACE/meg-z790-ace-02-500x500.png "MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard")
/MEG Z790 ACE/meg-z790-ace-03-500x500.png "MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard")
/MEG Z790 ACE/meg-z790-ace-04-500x500.png "MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard")

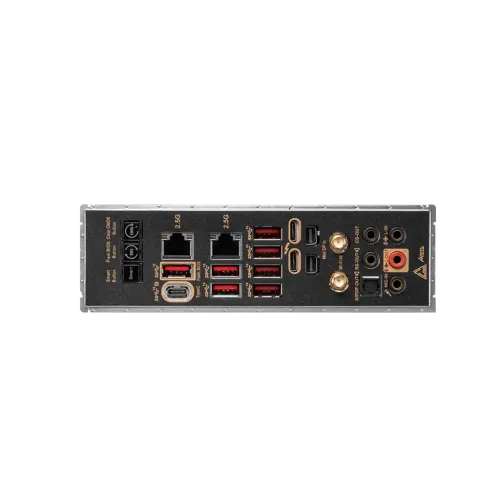

/MEG Z790 ACE/meg-z790-ace-05-500x500.png "MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard")
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Form Factor | E-ATX 277mmx304.8mm |
|
| Basic Information | ||
| Chipset | INTEL Z790 | |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| Display Port | 1x Type-C DisplayPort | |
| LAN | 2x Intel 2.5Gbps LAN | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
|
| Supported Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G port |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 2x USB 3.2 Gen 2x2 Type C V-check point |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |
The MSI MEG Z790 ACE Motherboard supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket. This E-ATX motherboard supports DDR5 Memory, and Dual Channel DDR5 7800+MHz (OC). It features Dual Thunderbolt 4 ports. Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture provide reliable connectivity and a better user experience. It comes with 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors ready to unleash maximum performance. It offers 5x M.2 connectors. Onboard quintuple M.2 connectors including one PCIe 5.0 solution for maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr, and Frozr AI software to ensure extreme performance with low temperatures. The MSI MEG Z790 ACE Motherboard is equipped with onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery. MSI MEG Z790 ACE features 8 Layer PCB with 2oz Thickened Copper. It provides higher performance and long-lasting system stability without any compromise. It also offers Audio Boost 5 HD. It is the ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier delivering a breathtaking experience. The MSI MEG Z790 ACE Motherboard comes with a 03-year warranty.
