| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 1x Front panel audio connector | |
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 2x DDR4 memory slots Supported Memory: Supports 1R 2133/2666/2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile [XMP] Maximum Memory: support up to 64GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Inte I225-V 2.5Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (from Z590 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset) Supports 2280 storage devices M2_2 slot (from Z590 chipset) Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen2 10Gbps Type-C port 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector |
|

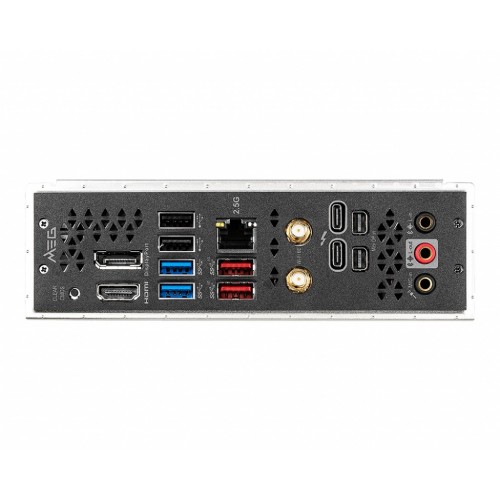

| USB Port | 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

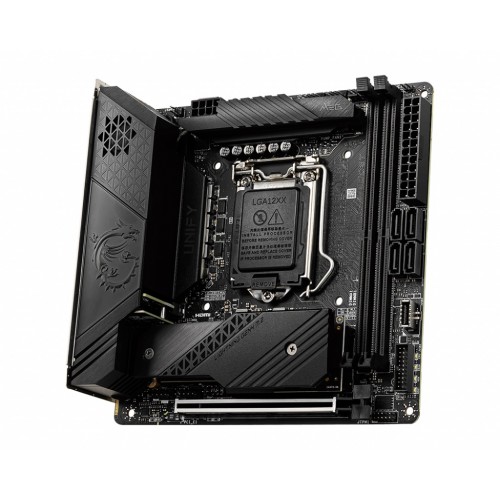

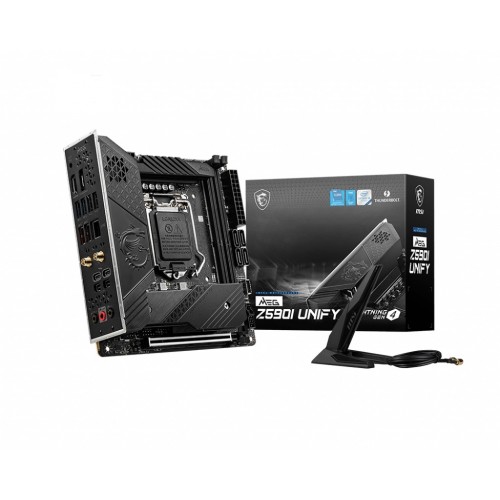

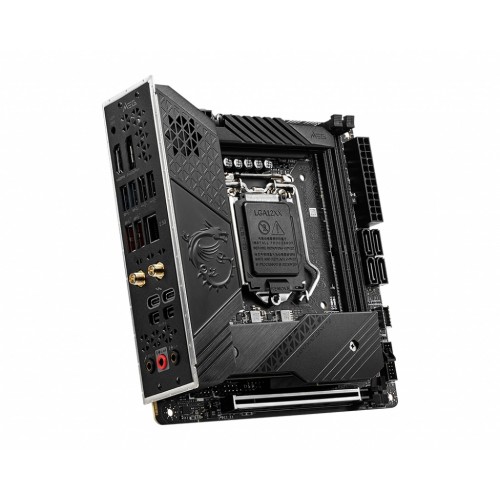

The new MSI MEG Z590I Unify Gaming motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed, Utilizing 11th Gen Intel processors. The2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI MEG Z590I Unify Gaming Motherboard Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz. This Motherboard has Dual Thunderbolt 4 ports, that Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. It comes with Extreme Power Design, that INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors. Here, Outstanding Cooling Solution, that Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp. This Motherboard has 2.5G LAN with the latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. In this Gaming Motherboard, Twin M.2 Connectors: Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Here, 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
