| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1200 |
|
| Form Factor | ATX Form Factor | |
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Intel I225-V 2.5Gbps LAN controller 1x Intel I219-V 1Gbps LAN controller |
|
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 chipset) 3x M.2 slots (Key M) |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| USB Port | 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

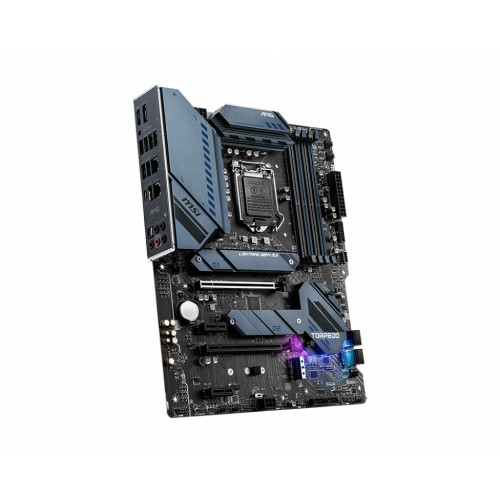

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. The MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. MSI MAG Z590 TORPEDO ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) MHz. This Motherboard Premium has Thermal Solution that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. This Motherboard has Latest Network Solution Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag & Lightning M.2, Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. It has Lightning USB 20G, that has Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It's AUDIO BOOST 5 Reward your ears with studio grade sound quality for the most immersive gaming experience. The latest MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.
