| Basic Information | ||
| Chipset | Intel B560 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold, and Celeron Processors | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Slots | 4 x DIMM slots | |
| Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot(from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|

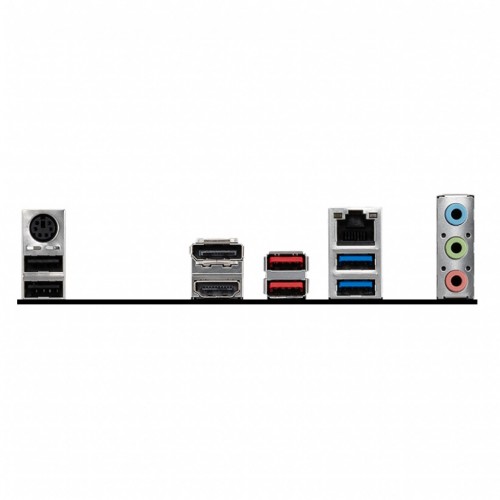

| USB Port | Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years Warranty | |

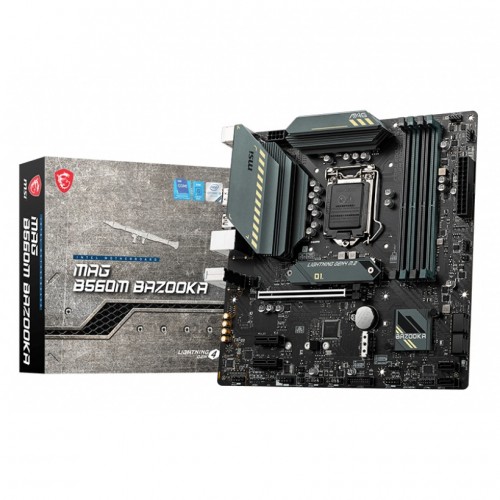

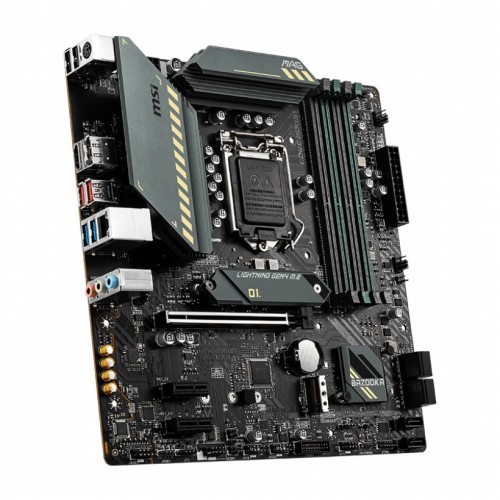

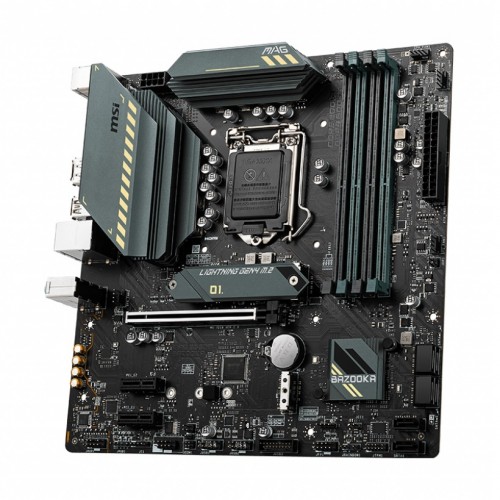

MSI MAG B560M BAZOOKA Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. MSI MAG B560M BAZOOKA supports DDR4 Memory, up to 5066(OC) MHz. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. MSI MAG B560M BAZOOKA Motherboard comes with Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. MSI MAG B560M BAZOOKA Motherboard features 2.5G LAN with LAN Manager. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The motherboard is powered by a USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. MSI MAG B560M BAZOOKA Motherboard has Audio Boost, Reward your ears with studio-grade sound quality. It is supported with Multi-GPU. With Steel armor PCIe slots.
Part Of The Motherboards Heatsink Design, M.2 SHIELD FROZR Is That The Next Generation M.2 Thermal Solution To Avoid This By Offering The Simplest Thermal Protection To Form Sure That SSD Maintains Maximum Performance. Detecting CPU & GPU Temperatures And Automatically Adjusting Fan Duty Of System Fans To A Correct Value By Adopting MSI AI ENGINE. MSI MAG B560M BAZOOKA Motherboard Total Fan Control Allows You To Check Your Primary System Characteristics During A Simplified Graphical Interface. Designed To Support The Foremost Popular All-In-One & Customized Water Cooling Solutions On The Market. A Fanatical Pump PIN Header Supports Up To Three Amp, Supplying You With Full Control Of The Pump Speed.MSI MAG B460M Bazooka Specs
MSI MAG B560M BAZOOKA Motherboard Conducts Thorough Memory Testing With The Foremost Popular Memory Brands Under Extreme Conditions To Make Sure Your System Runs Stable Regardless Of What. MSI OC LAB Doesn't Merely Exert Extreme Overclocking. Compare To The B460 Motherboard Memory XMP Profile, MSI MAG B560M BAZOOKA Motherboard Does Have Great Improvement In Performance And Efficiency For B560. Easy To Enable XMP Profile With Auto Power Settings To Urge The Simplest Memory Speed And Stability. MAG B460M BAZOOKA Review
MSI MAG SERIES Motherboards Support All The Newest Storage Standards, Which Allows Users To Attach Any Ultra-Fast Memory Device. Higher Efficiency Makes Your Work Easier. MSI Lightning Gen 4 PCI-E Is That The Latest And Therefore The Fastest PCI-E Data Transfer Solution With 64GB/S Of Transfer Bandwidth That Has Doubled Compared To Its Previous Generation. MSI MAG B560M BAZOOKA Motherboard PCIe 4.0 Maintains Both Backward And Forward Compatibility With Older And Newer Specifications. MAG B460M BAZOOKA Review Optimized By Steel Armor Design And Server-Grade PCB, You'll Enjoy Next-Gen Devices With No Compromise.
MSI MAG B560M BAZOOKA Motherboard Featuring 2.5Gbps LAN Which Provides Incredible Data Transfer Speed Faster Than General Gigabit LAN. MSI LAN Manager Automatically Classifies And Prioritizes The Latency-Sensitive Applications, Supplying You With The Simplest Online Experience With Low Latency. MSI MAG B560M BAZOOKA Motherboard Transfer Any Data, Music, And Films Over USB Easier. USB 3.2 Gen 1 Ports Are Ready In Both Front And Rear IO Provides A Big Variety Of Options To Attach Your USB 3.2 Gen 1 Devices.
