| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| BIOS | 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language |
|

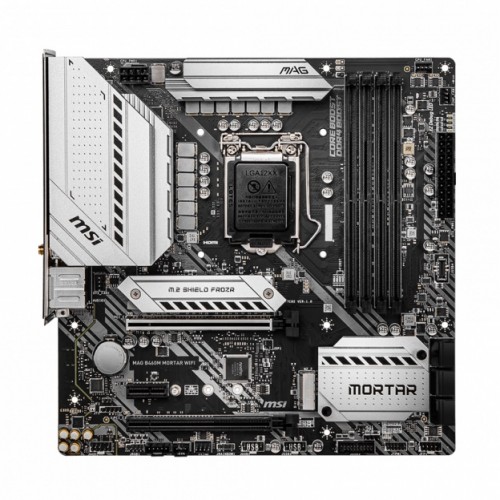

| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) |
|
| Basic Information | ||
| Chipset | Intel B460 Chipset | |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Memory | ||
| Slots | 4x DDR4 memory slots | |
| Memory | Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 Supports DDR4-2666 Memory (Max.) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz | |
| LAN | 1x Realtek RTL8125B 2.5G LAN Controller WIFI & BLUETOOTH: Intel AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
|
| Supported Storage | Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core™ processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connect 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector |
|

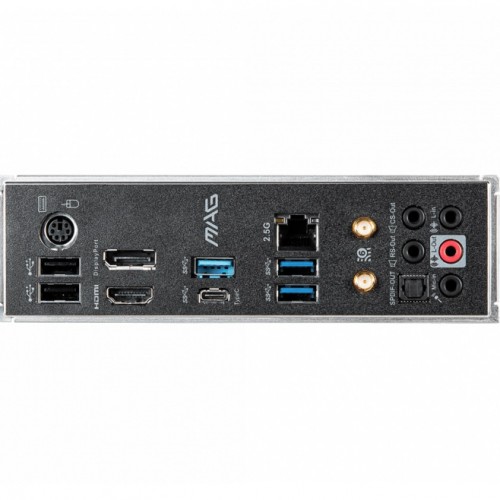

| USB Port | Intel B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |

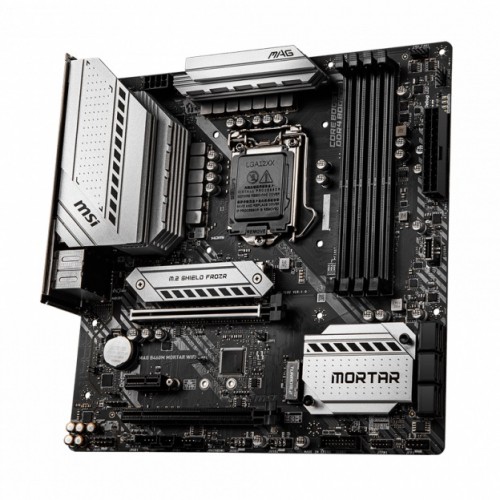

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking. The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
