| BASIC INFORMATION | ||
| Form Factor | Mini-ITX Form Factor | |
| Basic Information | ||
| Chipset | Intel H510 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 2x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) 1 Max frequency: 1DPC 1R Max speed up to 3200+ MHz 1DPC 2R Max speed up to 3200+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: Support up to 64GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Realtek 8125B 2.5Gbps LAN controller | |
| Supported Storage | Intel H510 Chipset 4x SATA 6Gb/s ports (from H510 chipset) 1x M.2 slot (from H510 chipset) Support up to PCIe 3.0 Supports SATA 6Gb/s Supports 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|

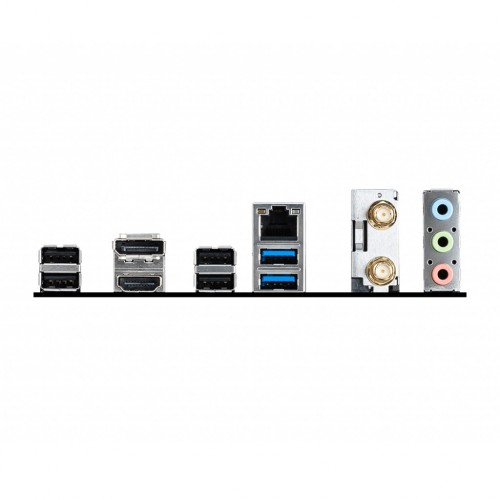

| USB Port | Intel H510 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel GL850G Hub: 2x USB 2.0 ports available through the internal USB connector |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

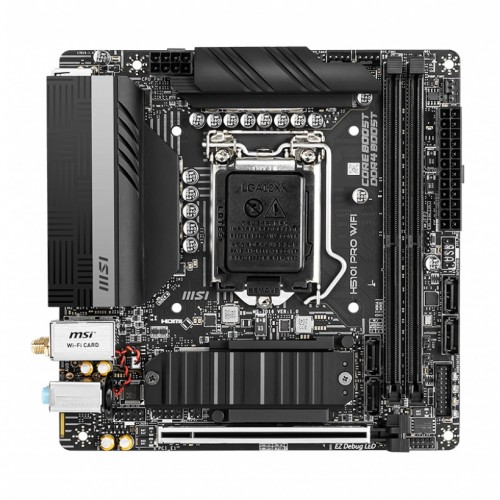

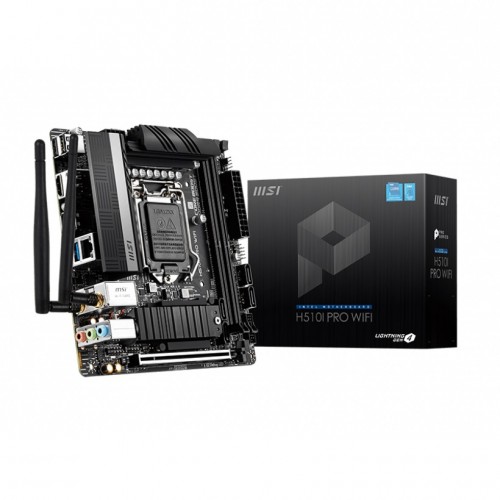

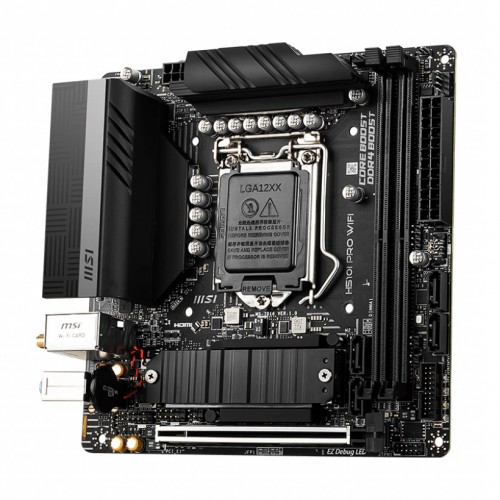

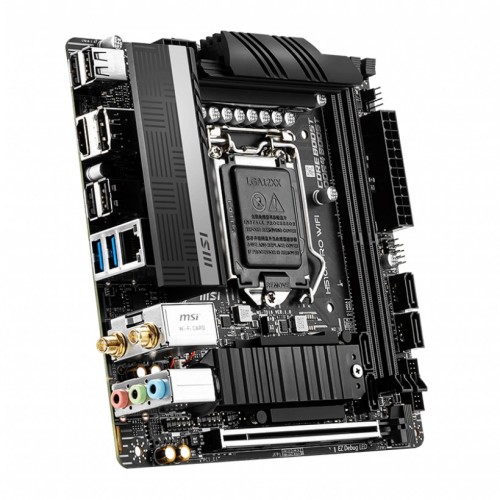

MSI H510I PRO WIFI 10th and 11th Gen Mini-ITX Motherboard support 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 3200(Max) MHz. It comes with a premium layout and digital power design to support more cores and provide better performance. It is featured with advanced technology to deliver pure data signals for the best performance and stability. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. It features Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It offers Lightning Fast Experience with PCIe 4.0. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It features 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. It has an isolated audio design like a dedicated sound card, audio components, and circuits have been laid on a reserved motherboard section and electrically isolated. A high-fidelity sound experience with exceptional acoustics and realism for studio-level headphones is ensured. Steel Armor protecting VGA cards against bending and EMI for better performance, stability, and strength.
