| BASIC INFORMATION | ||
| Form Factor | Micro-ATX | |
| Basic Information | ||
| Chipset | Intel H410 Chipset | |
| Audio | Realtek ALC892/ALC897 Codec | |
| CPU | Micro-ATX | |
| Memory | ||
| Memory | Type: DDR4 Slots: 2 Supported Memory: 2933(Max)/ 2666/ 2400/ 2133 MHz Maximum Memory: 64GB |
|
| Connector & Ports | ||
| HDMI | HDMI x 1 | |
| LAN | Intel I219V Gigabit LAN | |
| Internal I/O Ports | DIMM SLOTS x 2 PCI-E X16 x 1 PCI-E X1 x 1 SATAIII x 4 M.2 SLOT x 2 TPM (HEADER) x 1 SERIAL PORTS(FRONT) x 1 VGA x 1 |
|

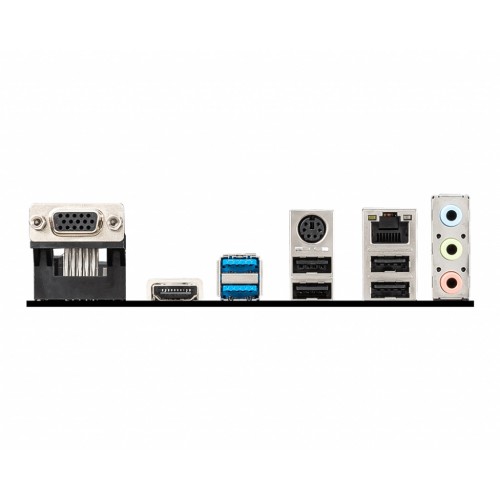

| USB Port | USB 3.2 PORTS (FRONT) x 2(Gen 1, Type A) USB 3.2 PORTS (REAR) x 2(Gen 1, Type A) USB 2.0 PORTS (FRONT) x 2 USB 2.0 PORTS (REAR) x 4 |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

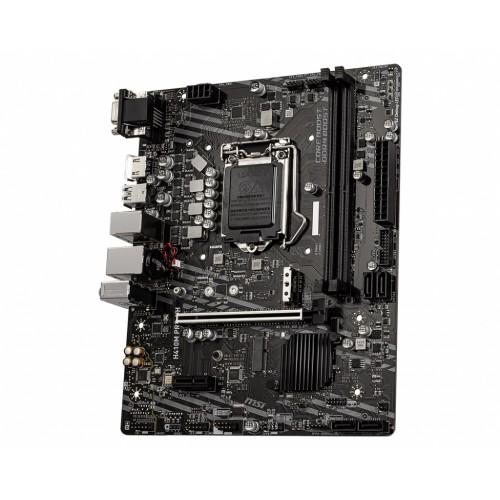

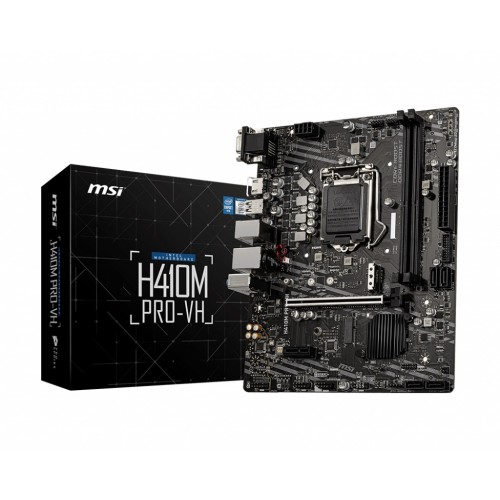

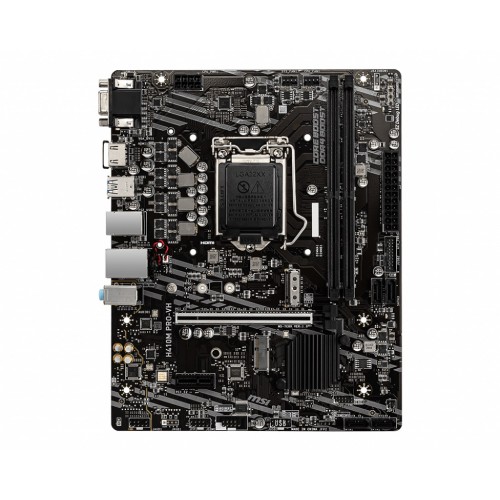

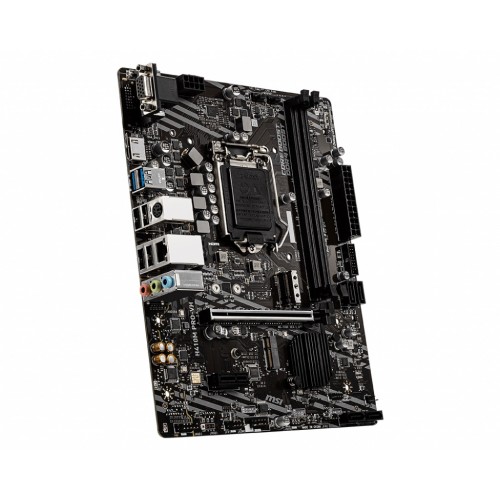

The MSI PRO series helps you to work smarter by delivering an efficient and productive experience, it featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The latest MSI MSI H410M PRO-VH DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI H410M PRO-VH DDR4 Micro-ATX 10th Gen Intel Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 2933(Max) MHz. This MSI H410M PRO-VH DDR4 motherboard featured with premium layout and digital power design to support more cores and provide better performance, Advanced technology to deliver pure data signals for the best performance and stability. MSI H410M PRO-VH DDR4 motherboard also comes with Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It's Audio Boost reward your ears with studio grade sound quality. For Steel Armor, it protecting VGA cards against bending and EMI for better performance, stability and strength. The MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
