| Basic Information | ||
| Chipset | AMD B550 Chipset | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
| CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors |
|
| BASIC INFORMATION | ||
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | Graphics: 1x VGA port, supports resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3 Max Shared Memory: 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| LAN | 1x Realtek RTL8111EPV 1Gbps LAN controller | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
|
| USB Port | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

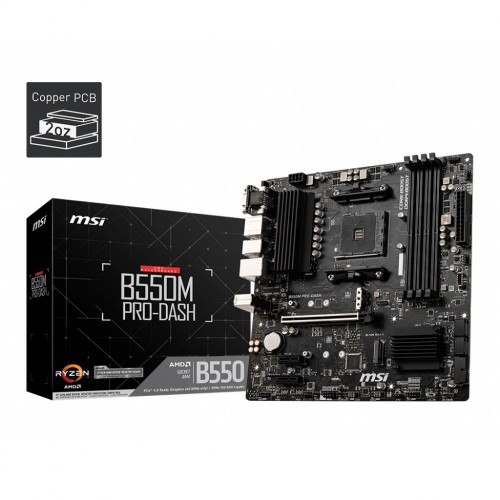

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
STABILITY & RELIABILITY
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid. The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI PRO series motherboards support TPM to enable a deeper and broader level of security coverage.
CONNECTIVITY
B550M PRO-DASH equips Realtek 8111EPV Gigabit LAN, a security network solution combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.
EXPERIENCE MORE

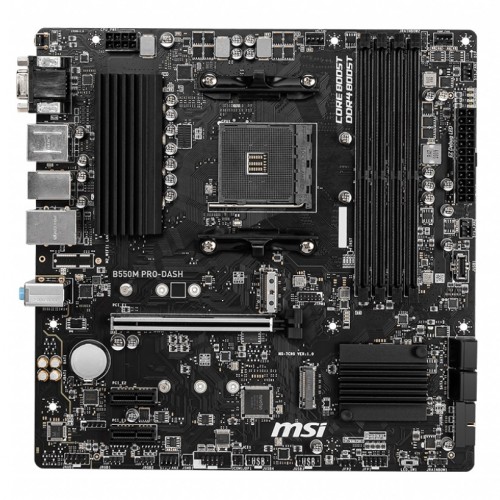

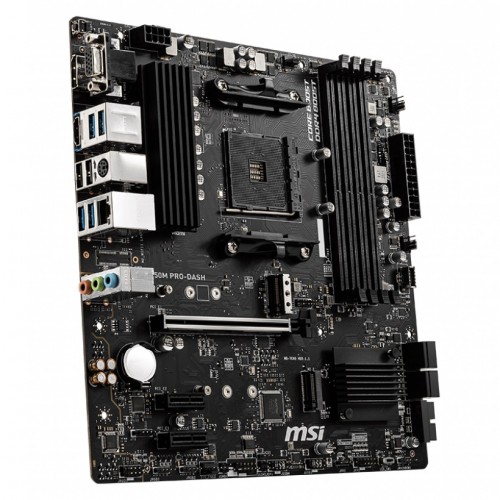

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
