| BASIC INFORMATION | ||
| Form Factor | mATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Basic Information | ||
| Chipset | AMD A520 Chipset | |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
|
| CPU | AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors | |
| Memory | ||
| Memory | Type: Dual-channel memory architecture Slots: 2x DDR4 memory slots Supported Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Maximum Memory: 64GB |
|
| Graphics | ||
| Graphics | Graphics: 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz Max Shared Memory: 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz | |
| LAN | 1x Realtek RTL8111H LAN controller | |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|

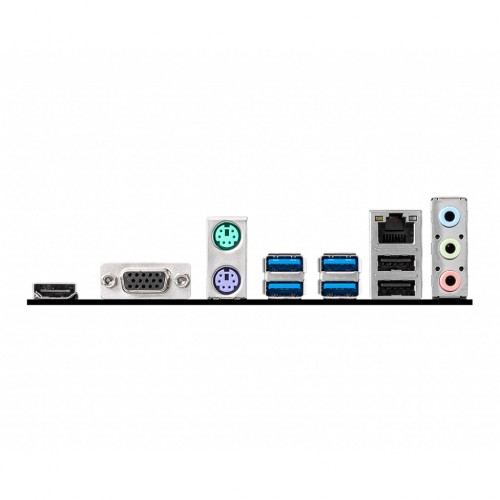

| USB Port | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

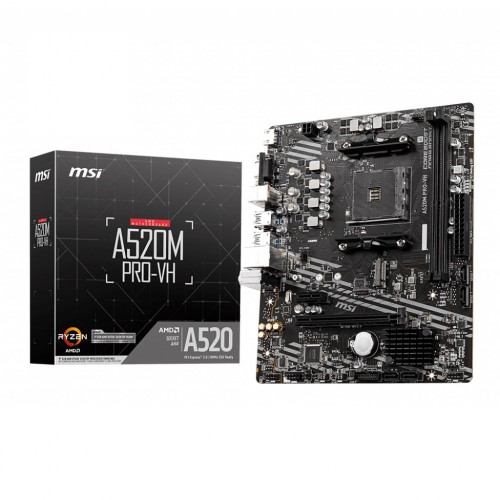

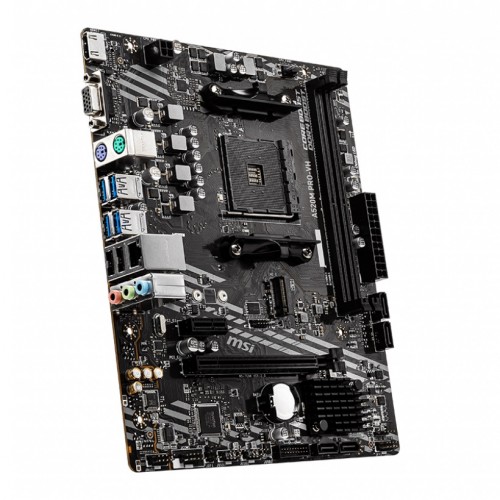

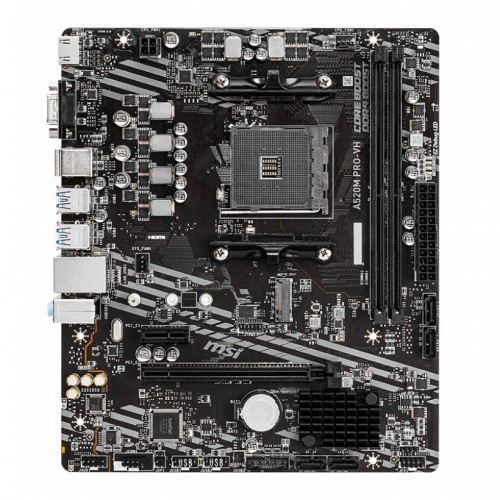

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4600(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI exclusive tools with a user-friendly user interface.
The MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard is a great choice for your gaming setup and it is the best price in Bangladesh. You can order motherboards at the lowest prices on our website PC House or visit our showroom. We are always ready to deliver the best products at any location in Bangladesh.
