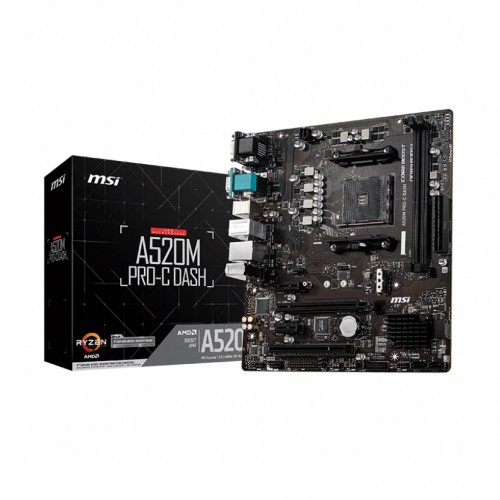

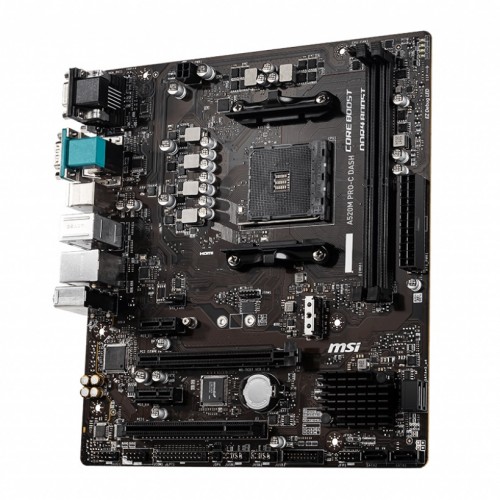

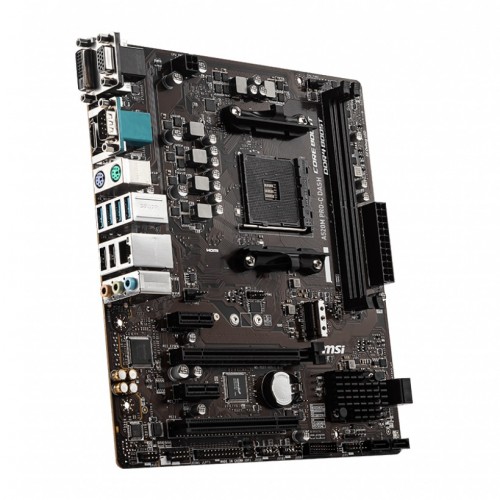

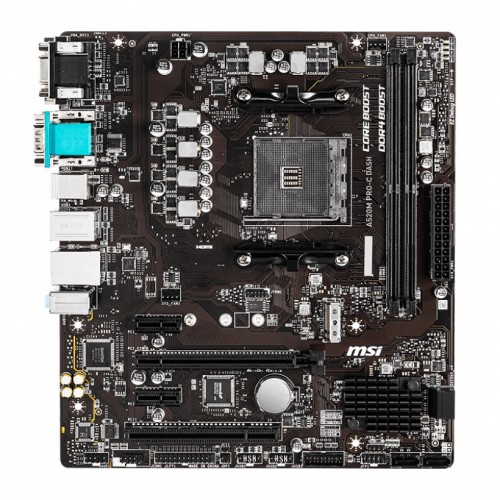

MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard
Product code
4504
Brand
MSI
Product model MSI A520M PRO-C DASH AMD AM4 Micro-ATX
Total Reviews

TBA

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD A520 Chipset
Audio Realtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series
desktop processors
BASIC INFORMATION
Form Factor Micro-ATX Form Factor
9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
Memory
Memory Type:
Dual-channel memory architecture
Slots:
2x DDR4 memory slots
Supported Memory:
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory:
64GB
Graphics
Graphics Graphics:
1x VGA port, supports a maximum resolution of 2048x1280 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
Max Shared Memory:
16GB
Connector & Ports
HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
LAN 1x Realtek RTL8111EPV 1Gbps LAN controller
Supported Storage AMD A520 Chipset:
4x SATA 6Gb/s ports
1x M.2 slot (From AMD processor, Key M)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Parallel port connector
1x Clear CMOS jumper

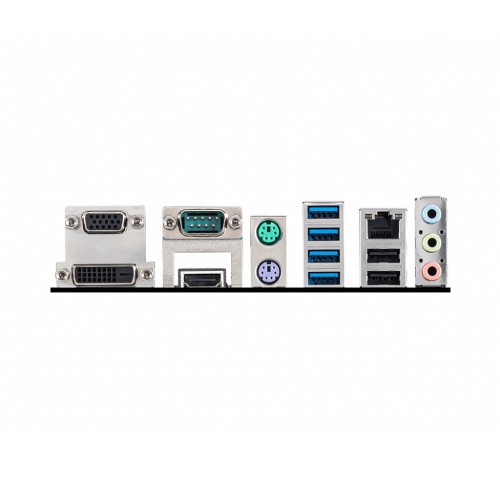

USB Port AMD A520 Chipset:
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps
connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0
connectors)
AMD Processor:
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
WARRANTY INFORMATION
Manufacturing Warranty 03 Years Warranty

MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4600(OC) MHz. It equips Realtek 8111EPV Gigabit LAN, a security network solution that combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds. It supports DMTF’s client management standard for secure out-of-band and remote management. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI exclusive tools with a user-friendly user interface. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
