| Basic Information | ||
| Chipset | AMD® X570 Chipset | |
| Audio | 7.1-Channel High Definition Audio Supports Optical S/PDIF output | |
| Memory | ||
| Slots | 1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3x PCIe 3.0 x1 slots1 |
|
| Memory | 4x DDR4 memory slots, support up to 128GB | |
| Storage | 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot(from AMD® Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD® X570 Chipset) - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices |
|
| Graphics | ||
| Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1 | |
| Connector & Ports | ||
| LAN | 1x Realtek® 8111H Gigabit LAN Controller | |

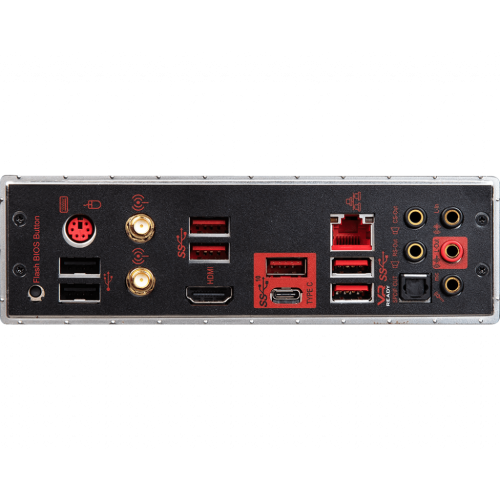

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors |
|
| USB Port | 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

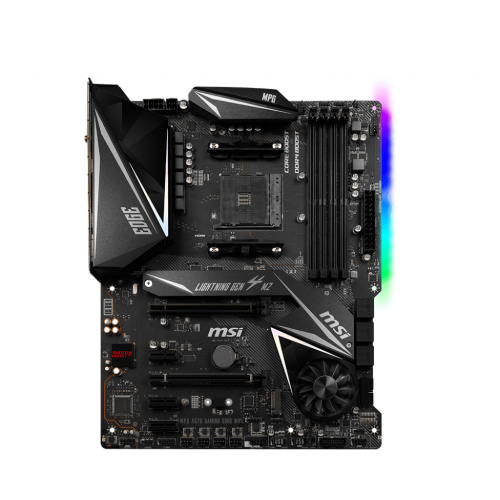

The MPG X570 GAMING EDGE WIFI MOTHERBOARD from MSI is built on the AMD X570 chipset, supporting Ryzen processors with an AM4 socket. It has four memory slots that can hold up to 128GB of DDR4 RAM running at up to 3466 MHz when overclocked. For storage, it's equipped with six SATA III ports and a single M.2 slot, which utilizes the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with DVI-D and HDMI outputs for integrated graphics, this motherboard also has one PCIe 3.0 x16 slot for a graphics card as well as a PCIe 2.0 x16 and two PCIe 2.0 x1 slots for other PCIe-based hardware. Other notable integrated features include Realtek ALC1220 7.1-channel HD audio, Realtek 8111H Gigabit LAN, and MSI Mystic Light RGB lighting.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to
provide best performance for enthusiast gamers and prosumers.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures
even high-end processors to run in full speed.
Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while
preventing throttling, making them run faster.
DDR4 Boost
Advanced technology to deliver pure data signals for the
best gaming performance and stability.
Audio Boost 4
Isolated audio with a high quality audio processor for the
most immersive gaming experience.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds,
without installing a CPU, memory or graphics card.
