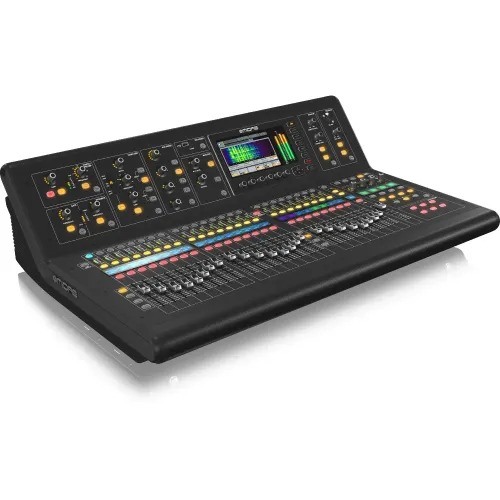

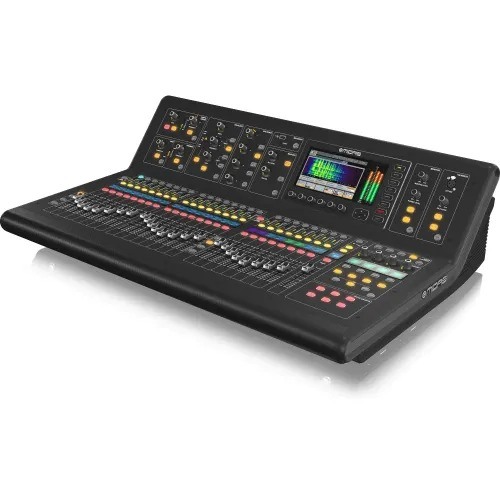

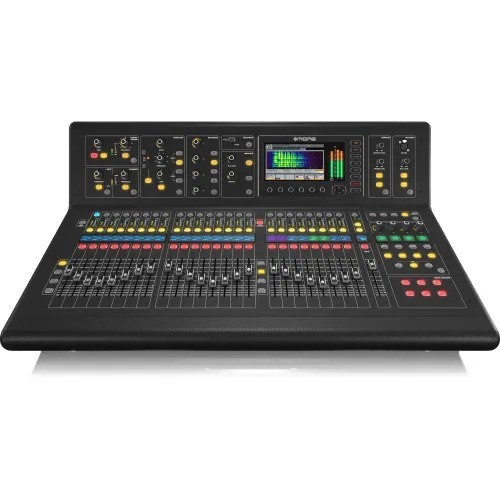

The Midas M32 is a professional-grade 40-channel digital mixer designed for live sound, studio recording, and broadcast applications. Renowned for its exceptional sound quality, user-friendly interface, and rugged build, it’s a popular choice among sound engineers and audio professionals.
Key Features:
1. Channels and Processing:
40 Input Channels: High-performance mic preamps deliver pristine audio quality.
32 Midas Preamps: Renowned for their low noise, wide dynamic range, and exceptional sonic clarity.
25 Mix Buses: Configurable as subgroups, monitor sends, or effects sends.
DSP Engine: High-speed digital signal processing for real-time operation without latency.
2. User Interface:
7-inch Full-Color Display: Intuitive navigation with clear visual feedback.
Motorized Faders: 25 long-life, motorized faders for seamless control and instant recall.
Channel Strip: Assignable controls for EQ, dynamics, and effects parameters.
3. Audio Quality:
192 kHz Precision: High-quality 24-bit audio resolution ensures professional-grade output.
Midas Pro Effects: Studio-quality effects and processing tools, including reverbs, delays, compressors, and EQs.

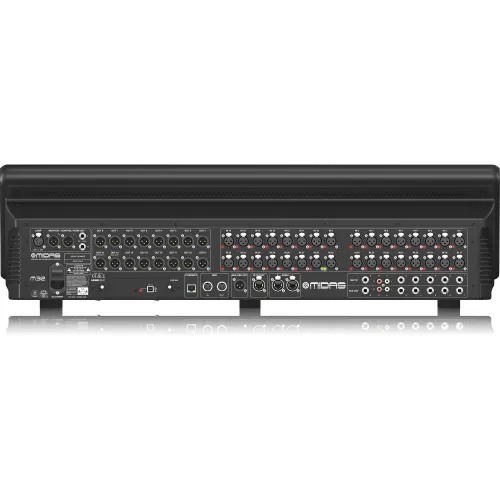

4. Connectivity:
Networking: AES50 networking supports up to 96 inputs and 96 outputs over a single CAT5 cable.
USB Interface: 32x32 channel USB 2.0 audio interface for direct recording and playback.
Expansion Slot: Supports various interface cards (e.g., Dante, MADI) for extended functionality.
5. Versatility:
Multi-Purpose: Ideal for live sound, broadcast, and studio applications.
Customizable Routing: Flexible signal routing for complex setups.
6. Build and Design:
Rugged Construction: Lightweight yet robust aluminum chassis designed to withstand the demands of touring.
Ergonomic Design: Compact and portable, yet feature-packed for professional use.
7. Additional Features:
Remote Control: Full control via iPad, iPhone, or Android devices using Midas apps.
Scene Management: Store and recall scenes for quick setup during performances or sessions.
Virtual Soundcheck: Play back multitrack recordings for rehearsal and setup.
Technical Specifications:
Mic Inputs: 32 XLR inputs with Midas preamps.
Output Channels: 16 XLR analog outputs.
Effects Engines: 8 stereo effects engines.
Power Supply: Internal universal switching power supply.
Dimensions: 35.3" x 20.5" x 8.5" (896mm x 520mm x 217mm).
Weight: Approximately 24kg (52.9 lbs).
Applications:
Live sound reinforcement for concerts, theaters, and houses of worship.
Studio recording with multitrack audio capabilities.
Broadcast setups requiring reliable, high-quality audio mixing.
