| Key Features | ||
| Capacity | 4GB | |
| Memory Type | DDR4 | |
| Frequency | 3200Mhz | |
| Latency | CL22 | |
| Output | ||
| Operating Voltage | 0 Degree C to + 85 Degree C | |
| Physical Specifications | ||
| PIN | 260-pin DIMM | |
| Heatspreader Color | No | |
| WARRANTY INFORMATION | ||
| Warranty | Life Time Warranty | |

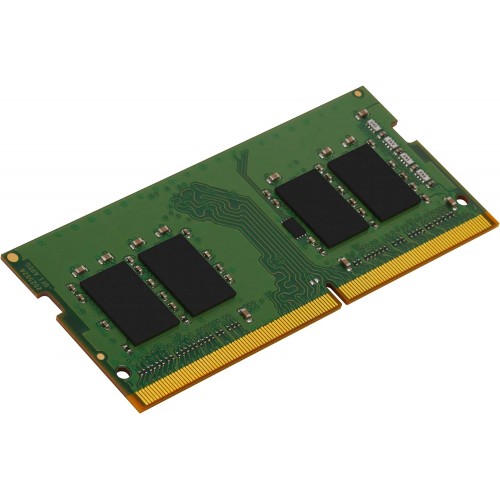

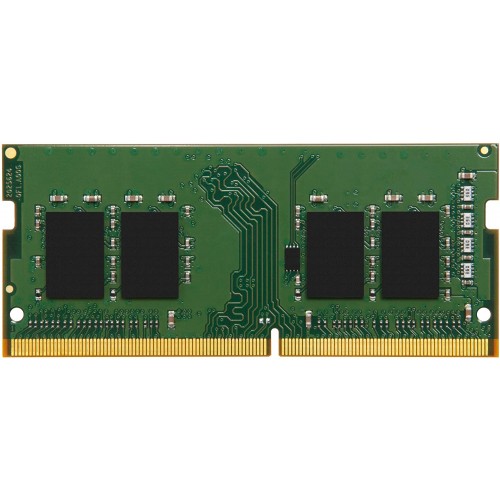

Kingston Value RAM 4GB DDR4 3200MHz Laptop RAM
Kingston Value RAM 4GB DDR4 3200MHz Laptop RAM is a 512M x 64-bit (4GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16 memory module built from four 512M x 16-bit FBGA components. The SPD is set to JEDEC standard delay DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM has gold contact fingers. This RAM supports both nominal and dynamic on-die termination of data, strobe, and mask signals (ODT). It has a low-power auto-refresh function (LPASR). The data bus inversion (DBI) approach is used to create and calibrate data bus On-die VREFDQs. The Kingston Value RAM 4GB DDR4 3200MHz Laptop RAM has a lifetime warranty.
