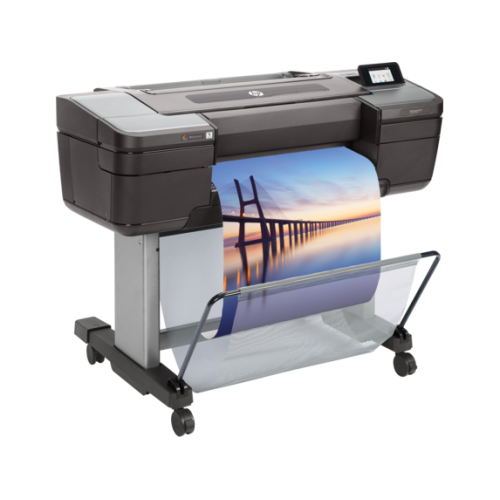

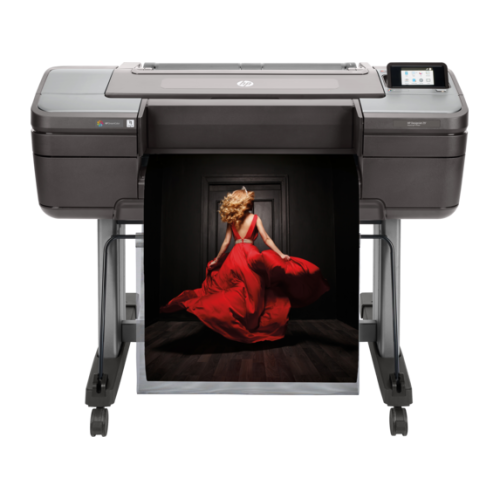

HP DesignJet Z9+ Large Format PostScript® Photo Printer - 24", with Spectrophotometer

HP DESIGNJET Z9+ POSTSCRIPT PRINTER SERIES

Functions Print

Print speed, maximum

Fast: 600 ft²/hr on plain media; Normal: 144 ft²/hr on coated media; Best: 38 ft²/hr on glossy media[1]

Resolution (color) Up to 2400 x 1200 optimized dpi

HP Thermal Inkjet

Number of print cartridges

9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray), optional gloss enhancer

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

Compatible ink types

Pigment-based

Print languages

Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

Mobile Printing Capability

Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP Print and HP Smart app for iOS and Android.

Connectivity, standard

Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab); Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive

Network ready Standard

Memory, standard 128 GB (virtual)[9]

Hard disk 500 GB self-encrypting

Non-printable area (cut-sheet) 0.2 x 0.67 x 0.2 x 0.2 in

Guaranteed minimum line width 0.0031 in (ISO/IEC 13660:2001(E))[6]

Line accuracy ±0.1%[5]

Color stability < 1 dE2000 in less than 5 minutes[8]

Print repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE2000[8]

Maximum optical density (black) 4 L* min/2.5 D[8]

Finished output handling Roll feed, rear sheet feed, media output bin, automatic horizontal cutter

Media sizes supported A, B, C, D

Media sizes supported A4, A3, A2, A1

Media sizes, custom 8.3 x 11 to 24 x 66 in

Media types Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit

Media sizes, standard 8.3 to 24-in wide sheets; 11 to 24-in rolls

Roll external diameter 5.3 in

Media thickness Up to 31.5 mil

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Power consumption <100 W (printing); <32 W (ready); <6.5 W (sleep); 0.1 W (off)

Operating temperature range 41 to 104ºF

Mechanical print time, US D color image, best mode, glossy8.1 min/page[2]

Mechanical print time, US D color image, normal mode, glossy 4.4 min/page[2]

1 year limited hardware warranty

Software included

HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional), HP SmartTracker (optional)

Dimensions (W X D X H) 50.9 x 27.4 x 39.3 in

Weight 159 lb

Package weight 225 lb

What's in the box

HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, quick reference guide, setup poster, power cord

Sustainability Impact

30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; Compatible with FSC®-certified HP large format printing materials and HP Recycled Satin Canvas, and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Recommended Media

Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified)[11] (Recyclable)[12] 1067 mm x 30.5 m (42 in x 100 ft);E4J57A HP Artist Matte Canvas 1118 mm x 15.2 m (44 in x 50 ft);C6569C HP Heavyweight Coated Paper (FSC® certified)[11] (Recyclable)[12] 1067 mm x 30.5 m (42 in x 100 ft);CH025A HP Everyday Matte Polypropylene, 2 Pack (Recyclable)[12] 1067 mm x 30.5 m (42 in x 100 ft);CG460B HP Premium Matte Photo Paper (FSC® certified)[11] (Recyclable)[12] 914 mm x 30.5 m (36 in x 100 ft)

Dynamic security

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
