| BASIC Information | ||
| Sensor | Less than 0.2 seconds are needed for each user to complete the facial recognition process | |
| BASIC INFORMATION | ||
| Display | The terminal boasts a compact 2.4-inch LCD screen | |
| Memory | It can store up to 500 face profiles, 1,000 card credentials, and 1,000 fingerprint data Record up to 100,000 events |
|
| Special Feature | The ISAPI and ISUP 5.0 protocols are also supported by the Hikvision DS-K1T320EFWX, guaranteeing seamless interaction with different platforms and security systems | |
| Feature | Supports EM cards | |
| Basic Information | ||
| Others | It supports multiple authentication methods, including face recognition, fingerprint scanning, card reading, and PIN entry, offering a flexible and secure access management system suitable for various environments | |
| Physical Specification | ||
| Lens | High-resolution 2 MP lens | |
| WARRANTY INFORMATION | ||
| Warranty | 01 years warranty | |

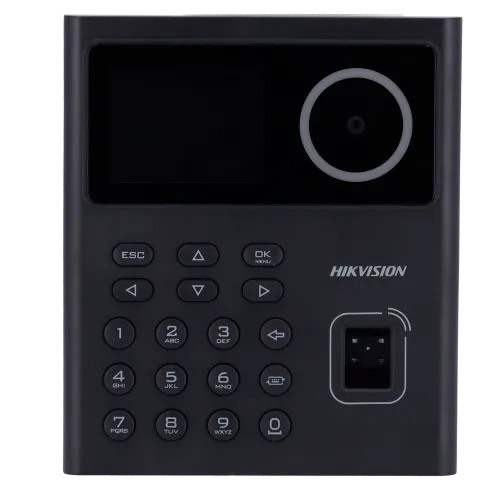

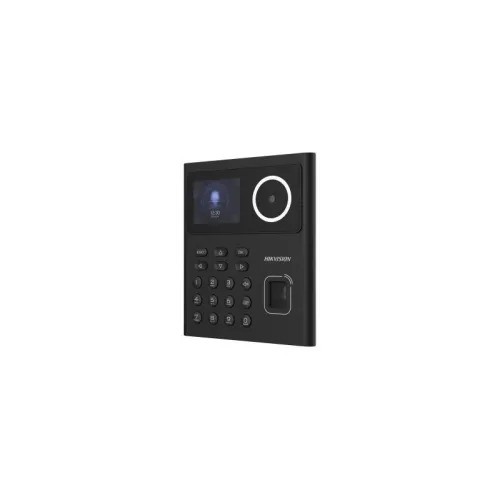

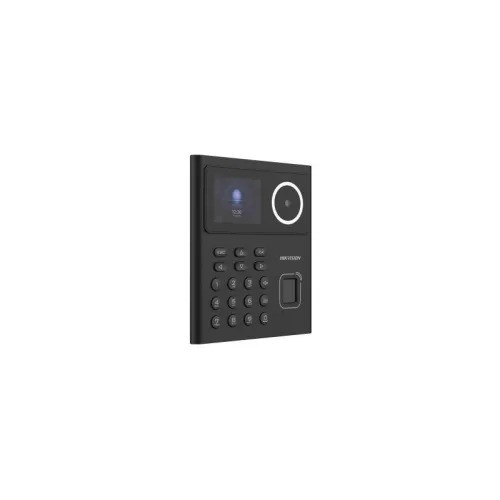

Hikvision DS-K1T320EFWX Face Recognition Access Control Terminal
The Hikvision DS-K1T320EFWX is a face recognition access control terminal designed for secure and efficient identity authentication in various settings, such as offices, residential buildings, and institutions. It combines advanced facial recognition technology with robust access control features to deliver a high level of security and convenience.
Key Features:
1. Advanced Facial Recognition:
Recognition Algorithm: Utilizes deep learning technology for highly accurate and fast facial recognition.
Capacity:
Stores up to 6,000 faces.
6,000 fingerprint templates (if used with an optional fingerprint module).
50,000 event records for extensive logging.
Recognition Speed: Less than 0.2 seconds per face.
2. High Performance:
Dual Camera System: Ensures precise facial recognition even in challenging lighting conditions.
Anti-Spoofing: Detects and prevents attempts to use photos, videos, or masks to spoof the system.
Wide Field of View: Supports recognition from various angles for user convenience.
3. Display and Interface:
Screen: 2.8-inch TFT LCD touchscreen for an intuitive user interface.
LED Indicators: Provides visual feedback for successful authentication or errors.
4. Access Control Features:
Authentication Modes:
Face recognition.
Card (supports 125kHz EM or 13.56MHz MIFARE).
PIN code (optional).
Dual Authentication: Combines multiple methods (e.g., face + card) for enhanced security.
Relay Output: Direct control of electronic locks or access points.
5. Connectivity:
Communication:
TCP/IP and Wi-Fi for flexible network deployment.
RS-485 for integration with other access control devices.
Integration: Seamlessly integrates with Hikvision’s software platforms, including iVMS-4200 and HikCentral.
Power: Supports both DC 12V and Power over Ethernet (PoE).
6. Environmental Adaptability:
Operating Temperature: -10°C to 50°C, suitable for indoor environments.
Operating Humidity: 10% to 90% (non-condensing).
Design: Compact and sleek, fitting into modern building aesthetics.
Applications:
Offices and Enterprises: Streamlines employee access and attendance tracking.
Residential Complexes: Enhances security by restricting unauthorized entry.
Educational Institutions: Manages staff and student access efficiently.
Healthcare Facilities: Supports secure, contactless access control to sensitive areas.
Technical Specifications:
Dimensions: 215 mm × 85 mm × 21 mm.
Recognition Distance: 0.3 to 1 meter.
Event Logs: Supports storage and review of up to 50,000 events.
