| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
|
| Chipset | Intel Z790 Express Chipset | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
|
| BIOS | 1 x 256 Mbit flash |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | 2 x audio jacks | |
| Basic Information | ||
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | CPU: |
|
| Memory | ||
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |

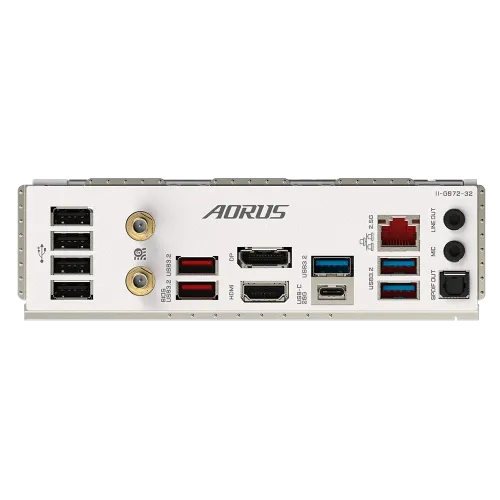

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| USB (s) | Chipset: |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Supported Storage | CPU: |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) |
|
| Special Features | Support for GIGABYTE Control Center (GCC) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

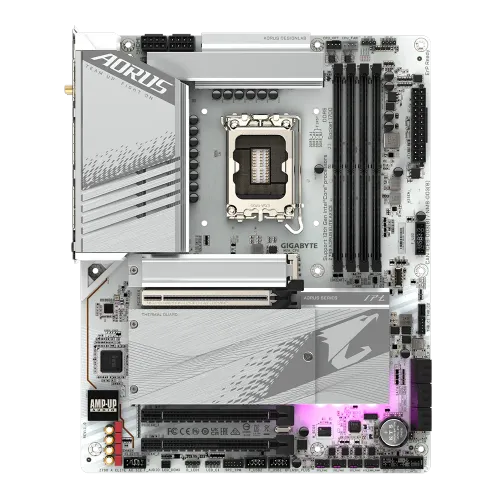

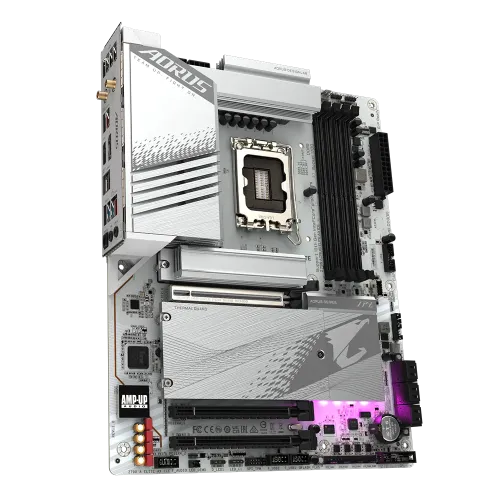

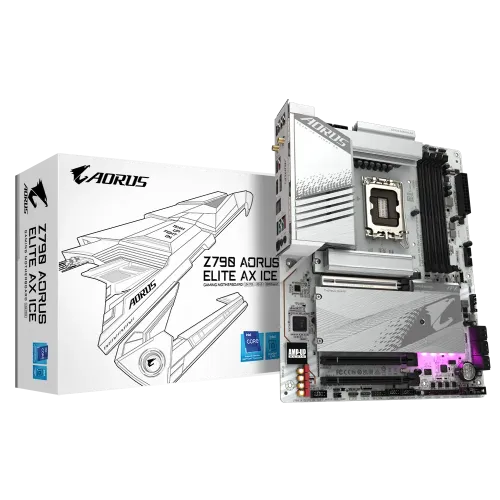

The GIGABYTE Z790 AORUS ELITE AX ICE ATX Motherboard is a high-performance motherboard that is compatible with Intel's LGA 1700 socket. It supports Intel Core CPUs from the 14th, 13th, and 12th generations, making it a flexible and future-proof alternative for PC enthusiasts and gamers. This motherboard supports Intel's 14th, 13th, and 12th Generation Series Processors, allowing you to take advantage of modern CPU technology. The motherboard provides outstanding performance with a double 16+1+2 phase digital VRM technology, delivering consistent power delivery for your CPU and whole system. You may enjoy quicker and more responsive system memory with dual-channel DDR5 memory support, 4*SMD DIMMs, and XMP 3.0 Memory Module support. Four PCIe 4.0 x4 M.2 ports deliver lightning-fast storage, ensuring your system can easily handle demanding apps and games. The M.2 Thermal Guard III and sophisticated thermal design features aid in the maintenance of VRM power stability and the optimization of M.2 SSD performance, even under severe workloads. The M.2 connections are fast-release and screwless, making it simple to install and change out M.2 drives without the worry of screws and intricate installation. You may experience ultra-fast network access for online gaming, streaming, and productivity with 2.5GbE LAN and Wi-Fi 6E (802.11ax). The motherboard has DP and HDMI connectors for numerous displays, as well as front and rear USB-C ports with remarkable data transfer rates of 10Gb/s and 20Gb/s, respectively. Smart Fan 6's various temperature sensors and hybrid fan headers provide precise management of system cooling. When the system is not under significant demand, Fan Stop technology aids in maintaining silent operation. Thanks to the Q-Flash Plus function, updating the BIOS has never been easier. You may upgrade the BIOS without installing the CPU, RAM, or graphics card, which saves time and effort throughout the update process.
