| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, Support For: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors (Please Refer "CPU Support List" For More Information.) |
|
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm X 24.4cm | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel |
|
| Memory | ||
| Memory | Support For DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules . Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules ECC Memory (ECC Mode) Support Varies By CPU Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (Please Refer "Memory Support List" For More Information.) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz Support For HDMI 2.1 Version, HDCP 2.3, And HDR. |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2242 /2260/ 2280/ 22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Support SATA And PCIe 4.0 X4/X2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors Support SATA And PCIe 3.0 X4/X2 SSDs 1 X M.2 Connector (M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/ 2260/ 2280/ 22110 SSDs: Supporting PCIe 4.0(Note)/3.0 X4/X2 SSDs 1 X M.2 Connector (M2B_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: Supporting SATA And PCIe 4.0(Note)/3.0 X4/X2 SSDs 6 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Only. |
|
| Internal I/O Ports | Internal I/O Connectors 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 3 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Clear CMOS Jumper |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

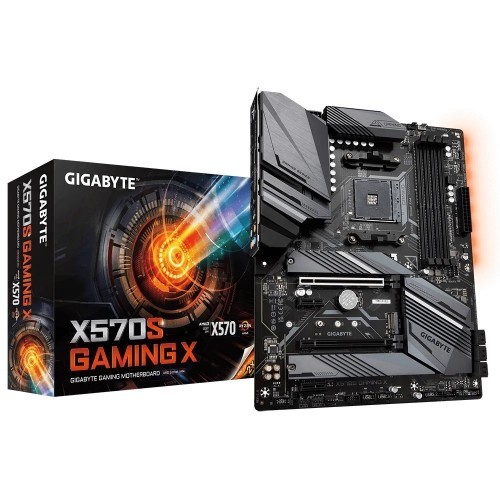

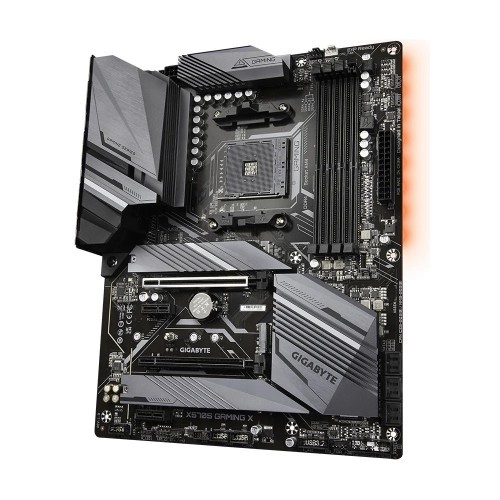

Gigabyte X570S GAMING X Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. The latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory and IO design to unleash the full potential . With the best quality components and GIGABYTE R&D design capability, Gigabyte X570S GAMING X is a true beast among motherboards. This motherboard comes with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN with Bandwidth Management, Rear and Front USB3.2 Type-C for Fast and Versatile Connections.
This motherboard designed with High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. The Gigabyte X570S GAMING X featured with Fully Covered Thermal Design, 5 W/mK Thermal Pad, 1X M.2 Thermal Guard II, 1X M.2 Thermal Guard. A high-end product needs to be future-proof so your PC stays up-to-date with the latest technology. Gigabyte X570S GAMING X comews with all next generation network, storage, and connectivity to keep you up to speed.
Single 32GB Support: With populated 4 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive applications such as rendering and video editing.
PCIe 4.0 Design: GIGABYTE Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
Thermal Design: High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
