| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
|
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1x D-Sub port | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | ||
| Special Features | Support for APP Center Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Warranty | 3 years | |

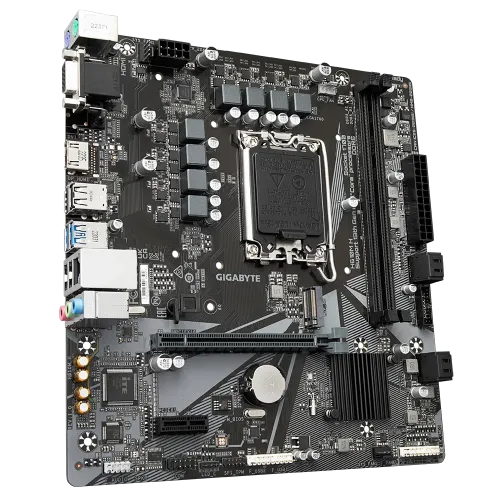

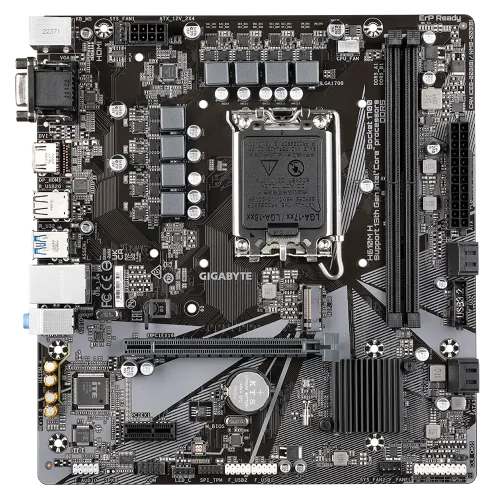

The GIGABYTE H610M H DDR5 mATX Motherboard is a high-performance motherboard that supports 14th, 13th, and 12th generation Intel processors via the LGA1700 socket. Because it is compatible with Intel Core 14th, 13th, and 12th generation CPUs, it provides a powerful and responsive computer experience. The motherboard supports DDR5 memory with dual-channel non-ECC unbuffered DDR5 slots, with a maximum capacity of 64GB that can be overclocked to 4800MHz. It has 1x HDMI and 1x D-Sub connection for graphics output, accommodating multiple display configurations. A 6+1+1 Hybrid Digital VRM Design for reliable power delivery, PCIe 4.0 Design for better data transfer rates, and Gen3 x4 M.2 for high-speed data transmission with support for NVMe PCIe 3.0 x4 M.2 SSDs are among the advanced features. An Anti-Sulfur Resistor is included to increase longevity, while Smart Fan 6 includes numerous temperature sensors and hybrid fan headers with FAN STOP for effective cooling. For an immersive audio experience, the motherboard also has GbE LAN with Bandwidth Management, high-quality audio capacitors, and Audio Noise Guard. The GIGABYTE APP Center provides a user-friendly interface for quick system customization and control. The GIGABYTE H610M H DDR5 mATX Motherboard provides a dependable and high-performance platform perfect for gamers, content makers, and enthusiasts, with added features such as Anti-Sulfur Resistors Design for better endurance.
The newest in high-performance computing, DDR5 motherboards are made to accommodate the quicker and more effective DDR5 RAM. The brand, features, and chipset of DDR5 motherboards vary in price in Bangladesh. Investing in a DDR5 motherboard offers compatibility with the newest technology and enhanced overall system performance for professionals and gamers wishing to future-proof their systems.
A cost-effective choice for anyone wishing to build or upgrade a system with Intel's 12th and 13th generation processors is the GIGABYTE H610M H DDR4 motherboard. With its support for DDR4 memory, this micro-ATX motherboard strikes a solid mix between price and performance. Depending on the retailer and any current specials in Bangladesh. It is suitable for light gaming and daily computing duties because to its stable power design, several USB ports, and support for PCIe 4.0, all of which come at a reasonable price. For consumers on a tight budget looking for consistent performance without going overboard, it's a great option.
The GIGABYTE H610M H DDR5 mATX motherboard, which supports Intel's 12th and 13th Gen processors, provides a strong platform for constructing an affordable system. Because it supports DDR5 memory, which offers quicker data speeds and more efficiency than DDR4, this micro-ATX board stands out. Despite being an entry-level alternative, it nevertheless has several USB ports, PCIe 4.0 capability, and a robust power design. For some users, though, the lack of more sophisticated networking choices like Wi-Fi and fewer expansion slots may be a disadvantage. All things considered, it's a trustworthy option for people wishing to upgrade to DDR5 without breaking the bank, perfect for daily chores and light gaming.
